TrailedLine Classic Compact
Hopper capacities from 7m³ to 14m³
Description

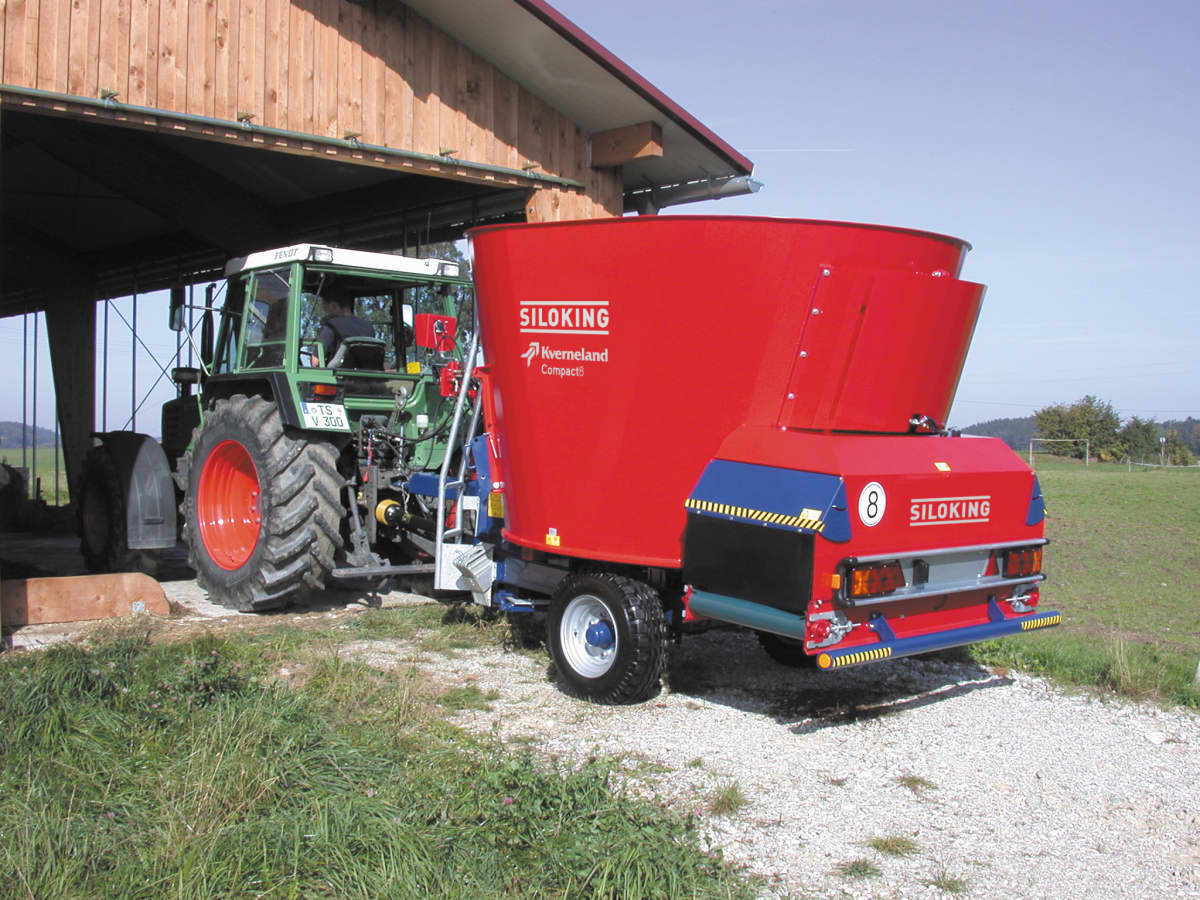

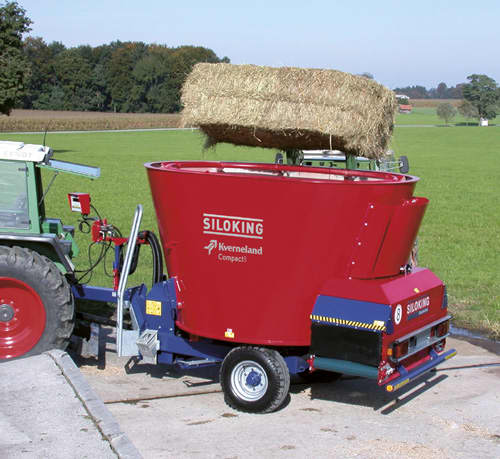

The Kverneland Siloking TrailedLine Classic Compact range with one turbo auger is ideal, even for use in confined buildings with small or low passage. The short chassis of the TMR mixer is particularly flexible and easy to manoeuver. The drive and the frame are designed for maximum continuous load. Comprehensive equipment, such as the 2-speed gearbox from model Compact 10-T upwards, the underrun protection with lighting and the ladder mounted to the frame are standard. Thanks to its hopper geometry and the robust drive, the TMR mixer can be used not only for standard mixes but also for breaking up round bales and for cutting long-fibered feed.
Features

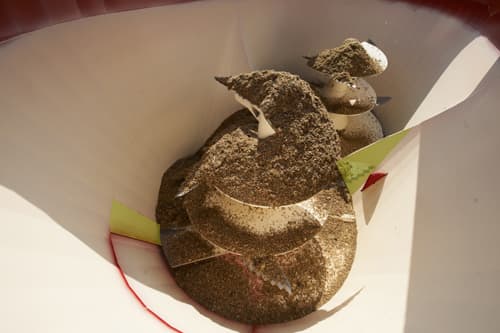

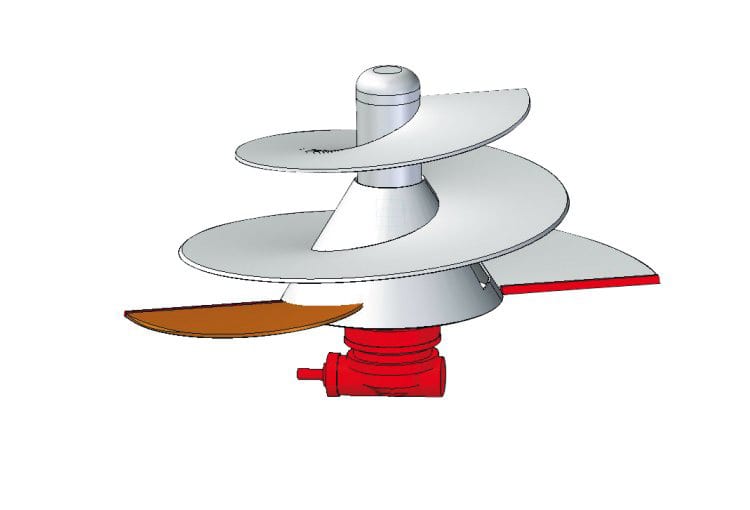

- Turbo Auger is fitted with hard-edged scraping strips (St 70) and multiple adjustable hard-coated XS knives, ensuring ultimate durability of this component.
- The scraping strip of the auger has a flat design to reduce power requirement. The flat strip is able to lift concentrates from the bottom of the machine so it is possible to add concentrates from the beginning of the mixing process.

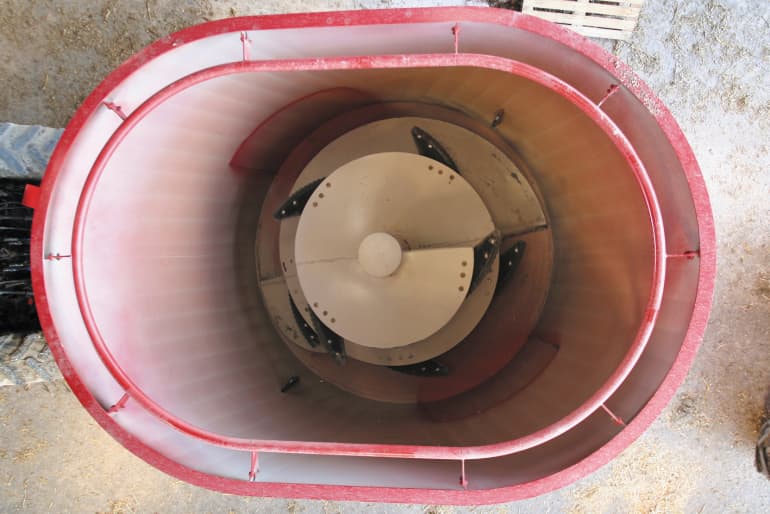

- The 20mm bottom plate (25mm on model Premium 16) from high quality (St 52) steel, together with the heavy-duty edged hopper ensure a perfect interaction between Turbo Auger and hopper.

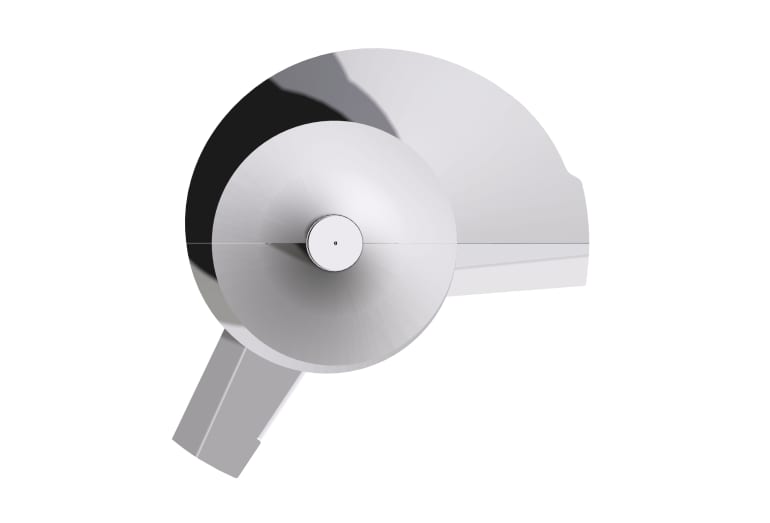

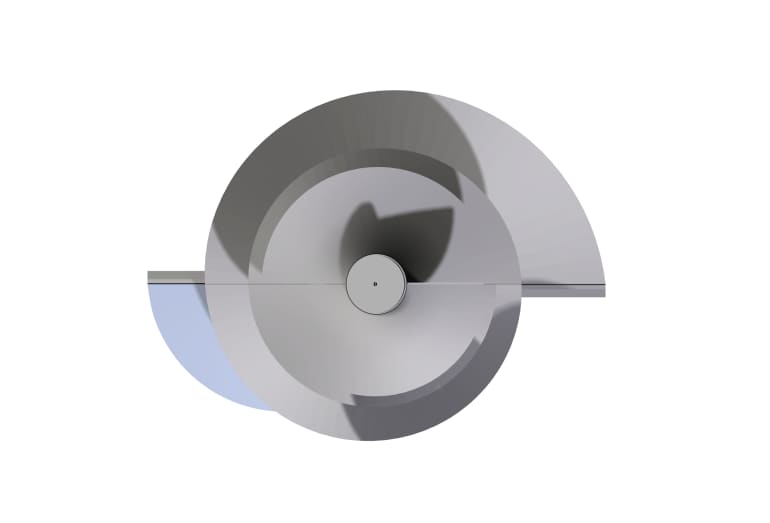

- Equipped with an additional wing at 180° to the auger leading edge, the Turbo Auger ensure a rapid and thorough mixing action.
- For longer durability Siloking Kverneland has developed SILONOX lining as an option for the mixing augers and hopper walls, where most wearing occurs.
- Standard with planetary gearbox with helical bevel gear drive, the heavy duty transmission is designed for efficiency and durability, even when operating at full load.
- The relationship between gearbox and auger is carefully balanced for the optimum mixing result – high mix quality in the shortest possible time.
- All elements of the transmission – auger connection, planetary gearbox, 2-speed gearbox & drive-line – match the requirements of excellent mix results with minimum down-time.
- Precise control of ration components is needed when preparing feed rations.
- Siloking Kverneland vertical mixers are fitted with a highly accurate weighing system as standard.
- This means that exact quantities of materials can be loaded - essential for the preparation of accurate feed rations.
- Featuring multiple weigh bars mounted between hopper and separate chassis, this quality system offers very accurate control of even small components during the loading of the machine.
- Clearly visible some distance from the machine, the simple scale is standard with a fully programmable system as an option.

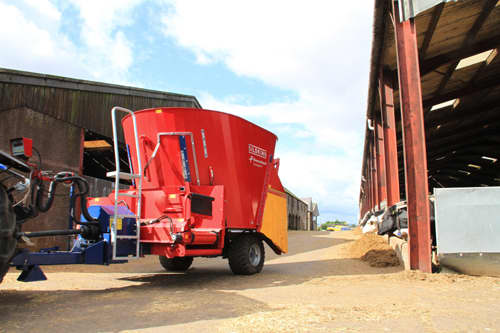

- The vertical mixer range can be adapted to suit a wide variety of barns or feed troughs.
- From feeding onto the floor or over high feed barriers, there is a discharge solution available.
- If needed a conveyor option can be fitted to transport material away from the door.
- Simple discharge doors - single or multiple per machine.
- Cross conveyor for discharge to either side of the machine - can be positioned at the front or rear of the machine.
- Hydraulically driven conveyors, fitted onto cross conveyor or direct onto discharge door, suitable for transporting material or into troughs.
- TwinLift conveyor - available for Compact 10-14 and Duo 14T-26. Can disharge in any position.
- The straw blower option is available on models Compact 10-T–14m³, Duo 16-18m³, Duo Avant 14-20 and Duo New Generation.
- The straw blower option offers a precise discharge of the straw inside the animal buildings.
- The 1.55m diameter front mounted flywheel comes from the Kverneland 850 series Bale Choppers – known for its´ robust design and quality distribution of straw.
- This system is mechanically driven from the tractor and located direct on the front of the machine, without the need for feed drums or conveyors.
- Drive to the flywheel is independent of the drive to the augers, supporting each phase of the process – loading, cutting, mixing and discharge.
- Straw is distributed by the side chute, offering straw blow up to 20m
- All information available at a glance.
- Weighing system controlled from the tractor cabin.
- Wireless - no disturbance of hydraulic functions.
- All information is stored centrally in the machine box.
- Weight information is always available - even in the silo.
- Control your weighing system from the loading vehicle.
- Feeding Management Software gives you full control over loading precision and feed consumption.
- The SWT package includes adding weighing system.
- The SWE Package combines programmable weighing system with electro-hydraulic control.
Technical specifications
Technical specifications
Download brochureModel |
Capacity (m³) |
Length |
Width |
Height |
Compact 7 |
7 |
4.30m |
2.06m |
2.52m |
Compact 8 |
8 |
4.50m |
2.25m |
2.44m |
Compact 9 |
9 |
4.55m |
2.25m |
2.64m |
Compact 10 |
10 |
4.65m |
2.40m |
2.75m |
Compact 10-T |
10 |
4.70m |
2.55m |
2.57m |
Compact 12 |
12 |
4.75m |
2.55m |
2.77m |
Compact 14 |
14 |
4.80m |
2.55m |
3.14m |
