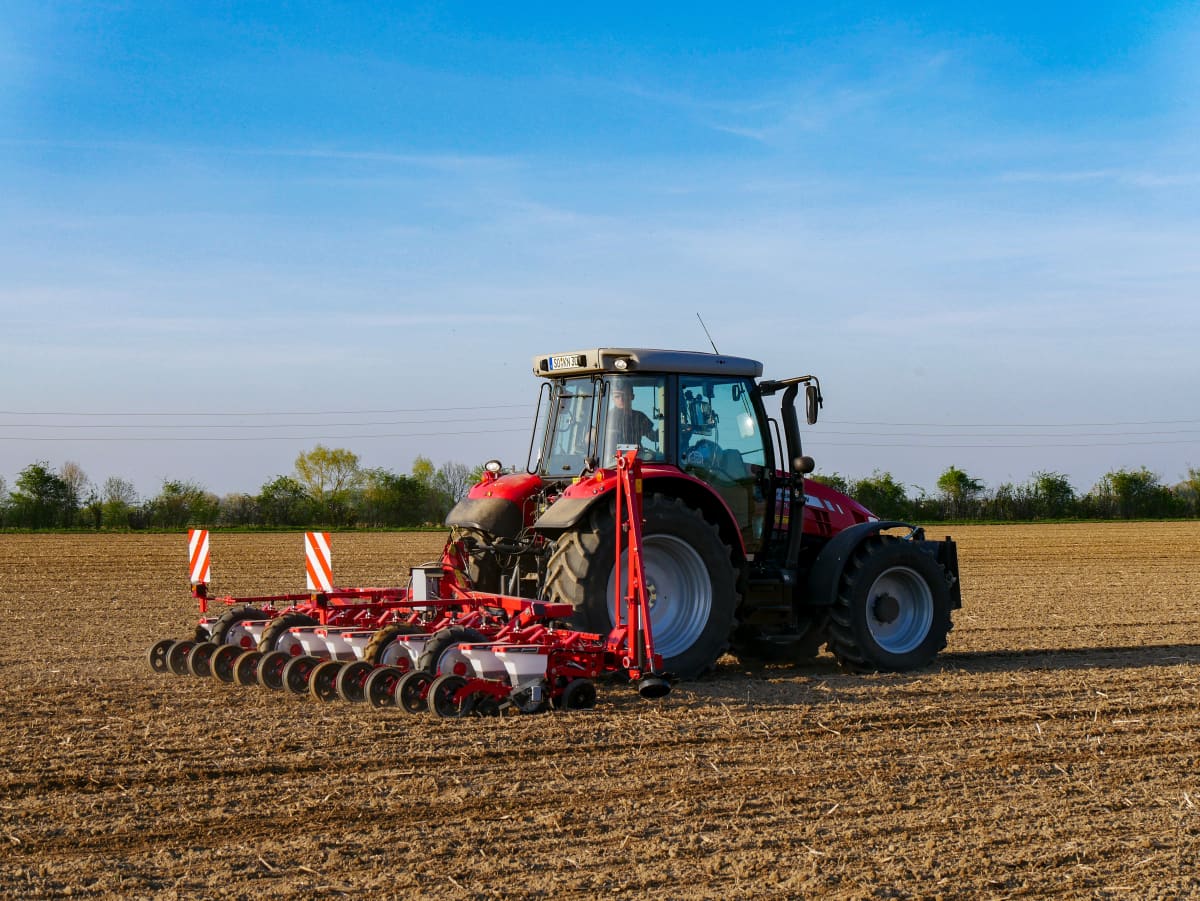

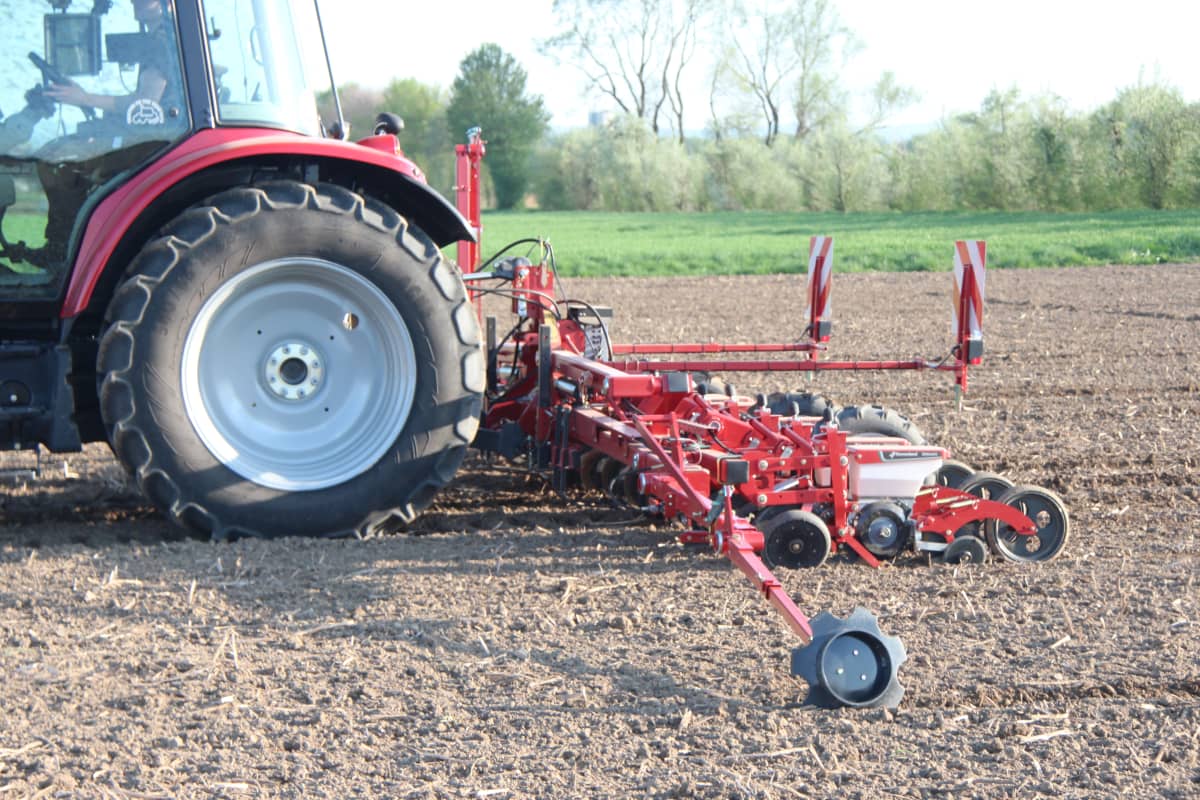

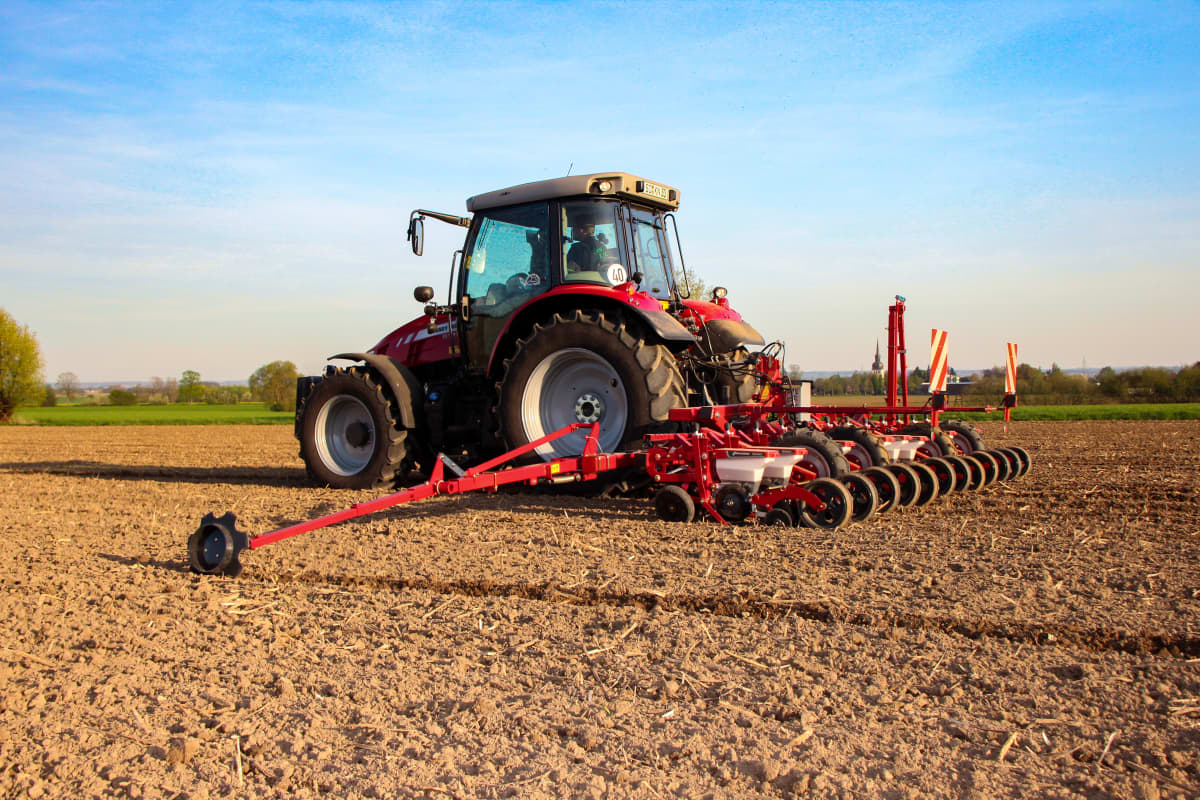

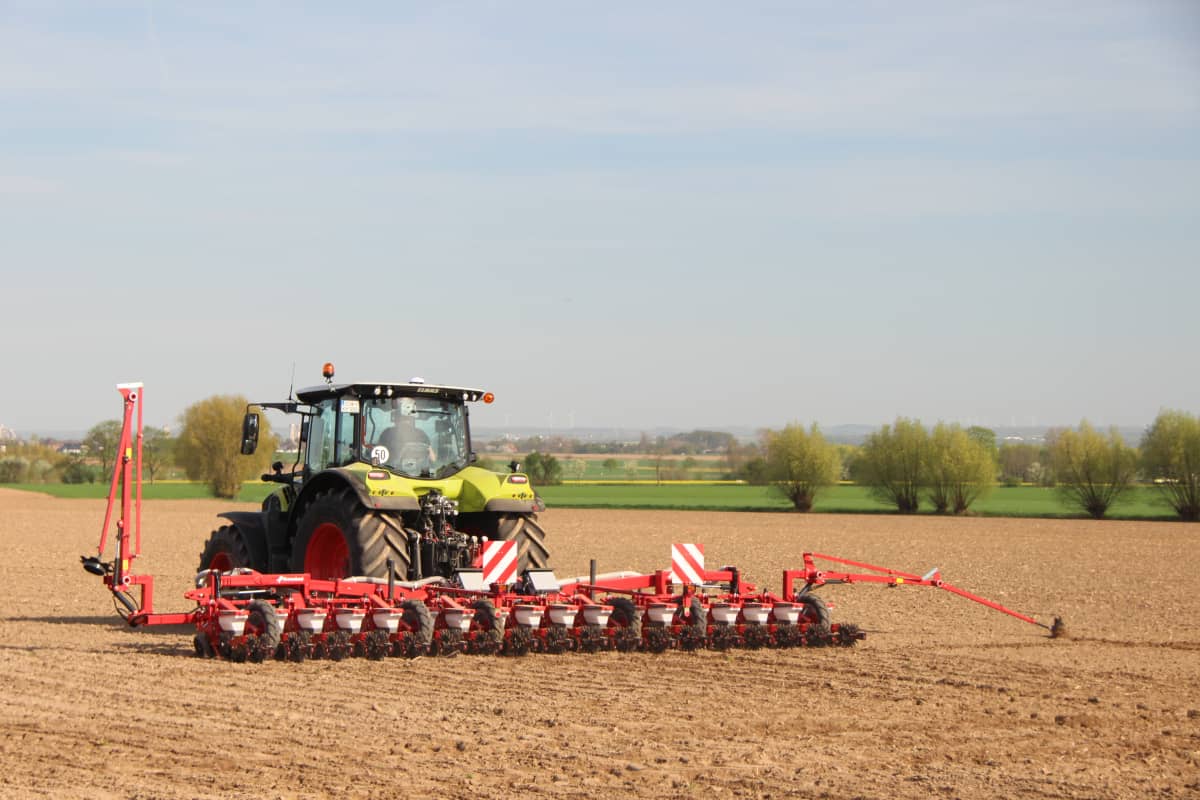

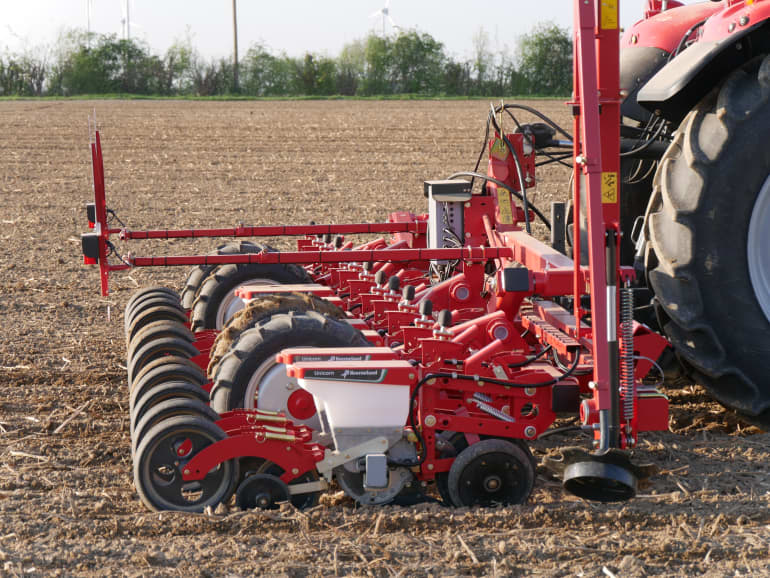

Unicorn 6m PH

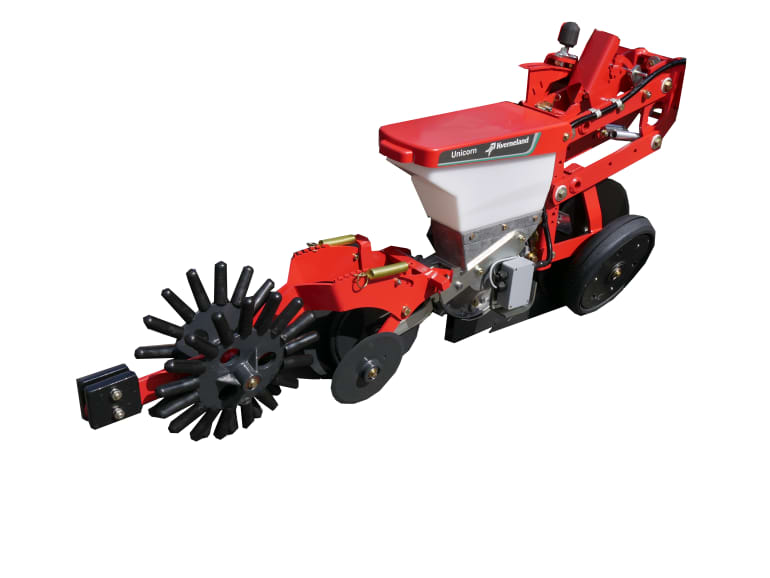

The sowing units – like the whole machine – are modular in design.

The basic element always remains the same and the equipment can be varied according to individual requirements.  For mulch seeding, the front Farmflex wheel is simply replaced with a double cutting disc equipped with side zero pressure tyres. The trailing coulter draws a clean seed furrow for precise seed placement.

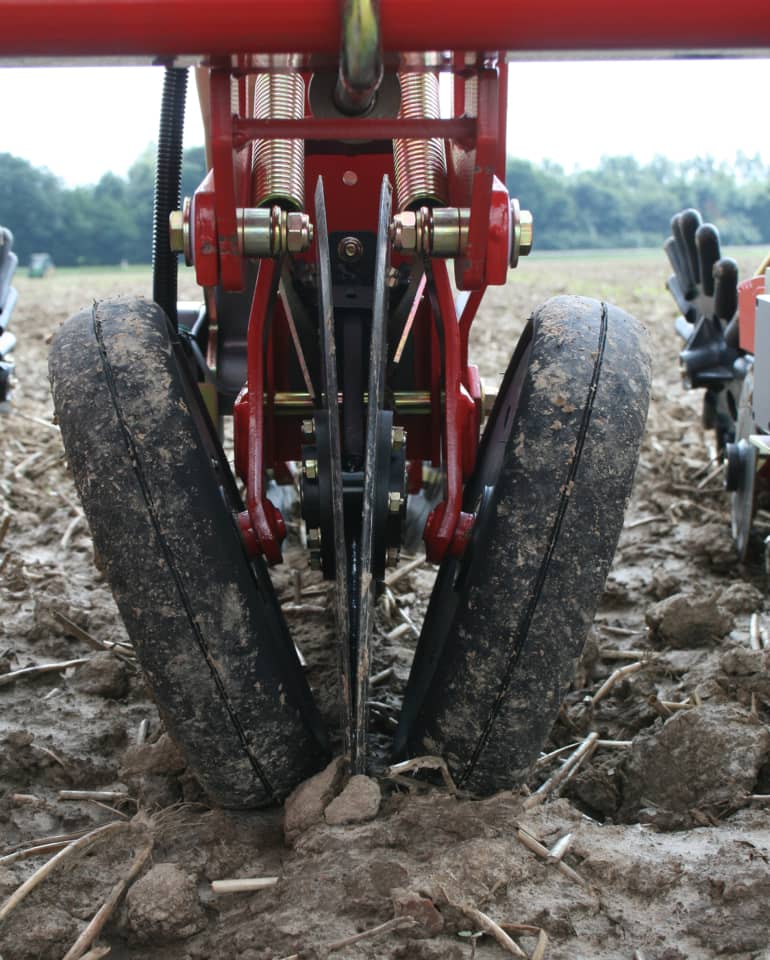

The Unicorn sowing elements are equipped with the V-press wheel as standard. The zero pressure rubber tyres do not allow soil to stick and provide excellent operation. The seed is covered with loose soil by adjustable coverer. The amount of covering soil is similar to that of the sowing depth ideal for wet and loamy soils.

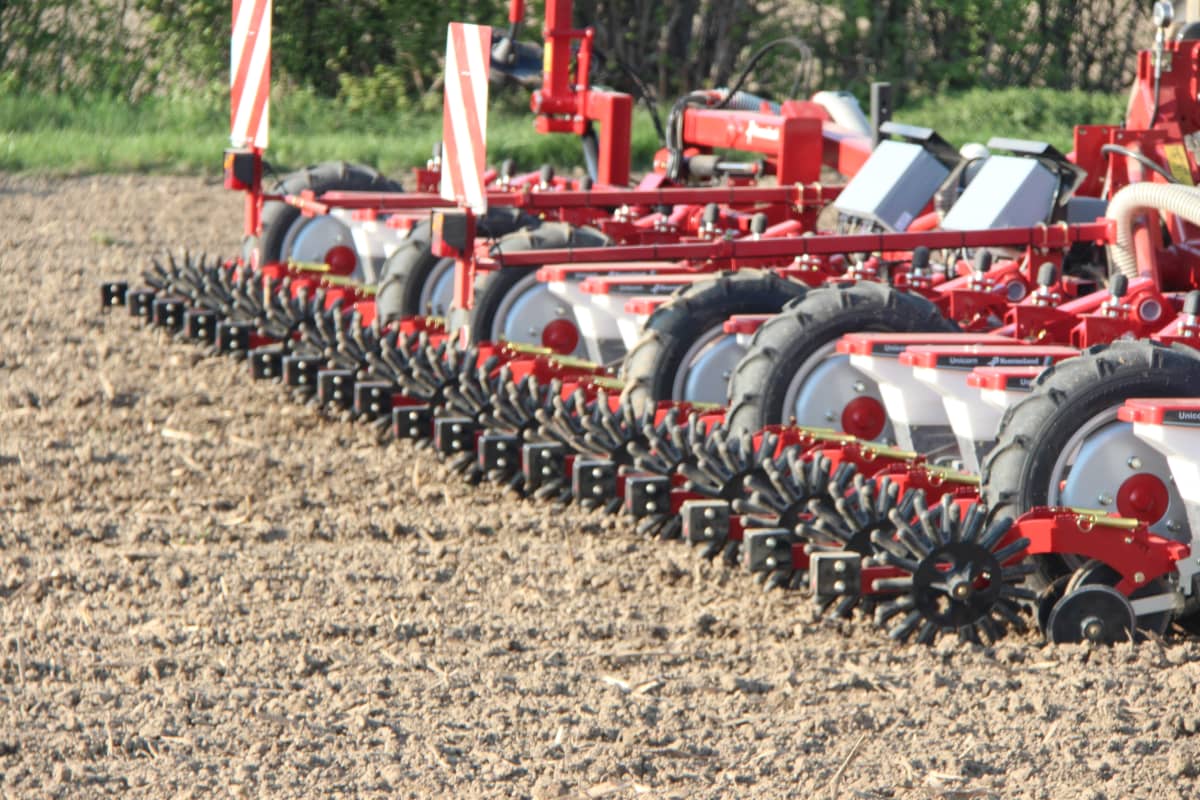

Optional finger press wheels are recommended for heavy dry soil and soils susceptible to late frost. The seed is covered with loose soil by the adjustable coverer. The covering soil is lower than the sowing depth. A "micro climate" protects the germinated plant.

UNICORN operates as an internally filled drill, with chamber wheel speeds, which correspond to the normal sowing speed in practice. The adjusted chamber speed of the bearing borne chamber wheel minimises bounce and roll impulses, thus increasing the precision of seed placement. Guaranteed filling of each individual cell: The cell wheel internal filling principle for precise seed placement

Electronic drive for highest precision. Complete control and monitoring of the machine from the tractor cab in accordance with ISOBUS standard.

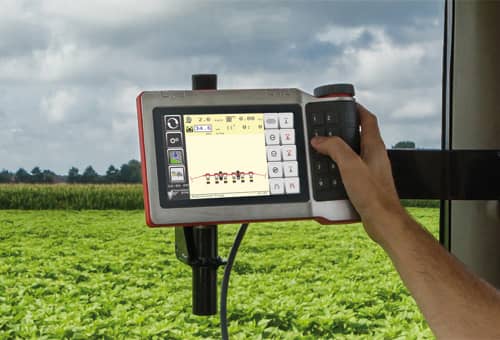

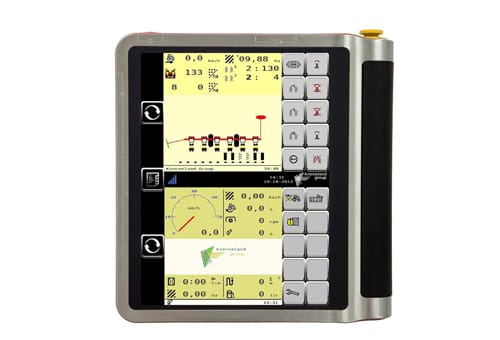

The latest Terminal universal ISOBUS terminal – IsoMatch Tellus PRO offering two ISOBUS interfaces in one terminal, the ISOBUS shortcut button and a touch screen display. With the unique dual screen functionality it gives the farmer the opportunity to view and control two machines and processes simultaneously.

• Two ISOBUS screens at a glance
• Integrated tractor ECU programme
• RS-232 connection for a GPS receiver or other external sources
• Option to connect up to 4 cameras
• Multifunctional, ergonomic, user-friendly design

The Tellus GO+ is the cost efficient alternative for ISOBUS compatible machines of the Kverneland Group.

IsoMatch GEOCONTROL - Cost saving with immediate payback

Seeding with GPS and GEOCONTROL in combination with an electric driven precision drill is a major step towards precision and cost saving. These machines are all equipped with ISOBUS technology which with the help of the IsoMatch Tellus terminal, can be easily controlled.

Each electric driven seeding element, in combination with GPS and GEOCONTROL, is automatically switched on or off in exactly the right place, ensuring there is no overlap with any row that has already been seeded. This is especially handy in triangular fields, on curved or irregular shaped headlands.

For further information regarding our iM FARMING concept go to https://ien.kverneland.com/iM-FARMING

GEOSEED - Precision at high end

GEOSEED is offered in two different levels:

GEOSEED Level 1 is the synchronization in the machines working width. This improves the distribution of seeds up to perfection in parallel or diamond pattern: Positive effects are the best use of nutrients, water and sun. Also the wind and water erosion is decreased.

GEOSEED Level 2 is the synchronization in the whole field. This is the necessary requirement for interrow cultivation, also across the seeding direction. GEOSEED is the only system in the world that makes this mechanical weed control possible!

The cultivation of sugar beet requires special care and the right supply of nutrients. In this respect, the application of micro granule and micro fertiliser whilst seeding plays an important role for early crop development.

micro-drill

Each unit of the micro-drill has been designed to supply three sowing units and offers a hopper capacity of 35 liters. It is electrically driven and ISOBUS controlled. The metering device consists of a wear-resistant plastic housing and exchangeable cell wheels made of stainless steel which ensure precise metering of different micro granules. Application rates from 2kg up to 25kg/ha are possible.

Emission control

The advantage for the environment: the granulate falls freely into the seed furrow without air support, minimising the emission of dust and complying with the current guidelines for emission control for any granulates applied.

Precision Farming

The comfortable, fully ISOBUS, integrated control system allows the adaption of the stop and start points of the seed row. This ensures precise shutting on and off at the end of the field (without overlaps or faults).

Operator safety

The engineers’ focus has been to increase operator safety by easy and safe handling. Therefore, the operator is able to exchange the cell wheels even when the hoppers are full of granule. There is no need to empty them first, reducing the operator’s risk of being in direct contact with the granules.

The Kverneland micro dill has been approved by the Julius Kühn Institute (Institute for Application Techniques in Plant Protection) (Reference G 2196).

The Kverneland micro-drill is available for Monopill e-drive II and Unicorn e-drive II.
