Kverneland 53100

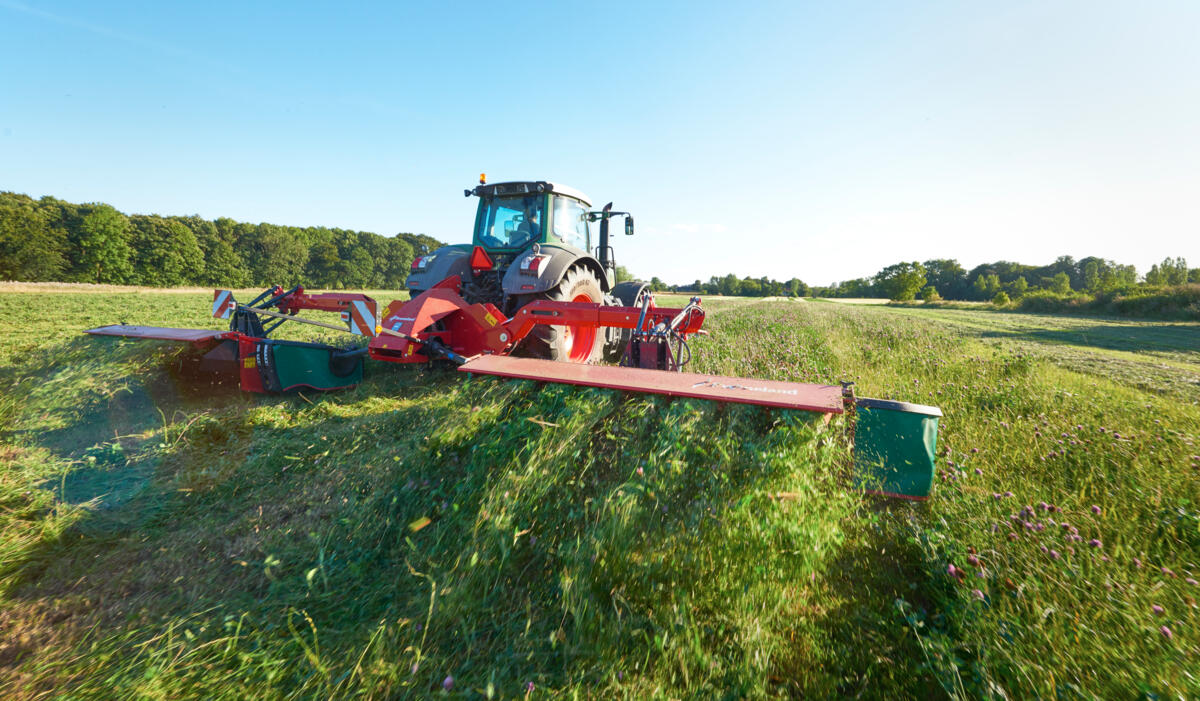

Our NonStop BreakBack system just got even better. With the new QuattroLink suspension this system now offers protection across the full working width of the mower, including the part closest to the tractor. There are no limiting factors on the inside part of the mower, giving the driver true peace of mind. When hitting an obstacle in the field, the mowing unit will instantly move backwards and up, and then return to the original position.

Hydraulic Adjustment of Overlap

Kverneland 3336 MT Vario and 53100 MT Vario are fitted with hydraulic SideShift integrated into the carrying arm allowing each mowing units to move 400mm. To easily compensate for changing field conditions, the adjustable overlap is designed as a telescopic arm, directly into the suspension.

Ground Pressure Remains Constant

During mowing operation the carrying arm always remains even to the ground, giving the mowing unit the freedom to instantly compensate and float across uneven ground contours. The true benefit of the suspension concept is that even though overlap is changed, the chosen ground pressure remains the same.

The Kverneland 53100 MT Vario provide generous clearance across the complete cutterbar, including the inside area. When lifting the mower on headlands, the mowing unit is raised and the carrying arm is tilted to a 10° angle. This provides the Kverneland 53100 MT Vario with a level ground clearance of minimum 500mm across the full working width. When lowing the mowing unit the carrying arm is lowered evenly without one side touching the ground before the rest of the mower, avoiding unnecessary stress and wear on the mower

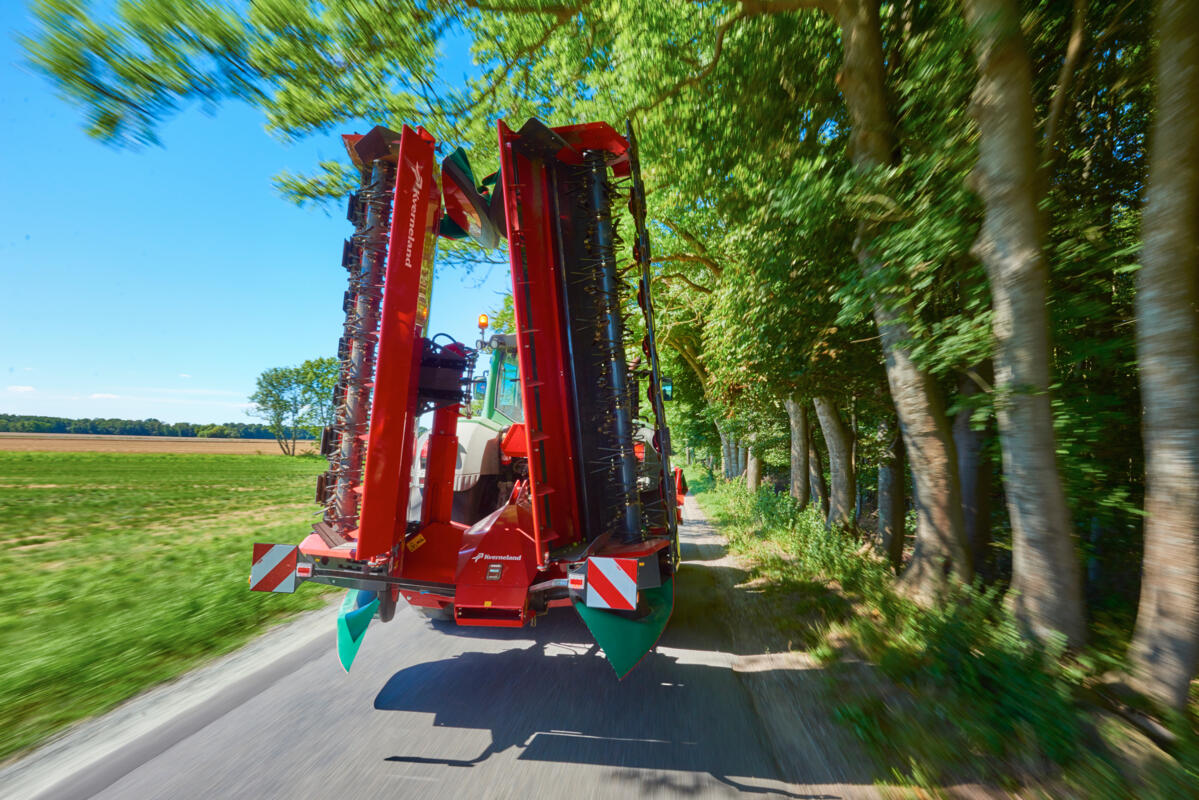

Compact During Transport

The mower folds hydraulically for transport and the telescoping frame arm moves to lowest overlap position, to reach a transport height of only 3.90m. And there is no need to leave the tractor before heading off, the outer FlexProtect protection guard hydraulically folds into transport position.

Parking, Safe and Sure-Footed

With the integrated parking device, storage of the Kverneland 53100 MT Vario is made easy and convenient, requiring a minimum of space during winter storage. The mower is firmly parked on strong and stable parking foot.

Even More Efficient Conditioning

The new conditioner plate can be adjusted at both front and rear ends to customize the conditioner to crop intensity. The front end is adjusted separately to suit the crop intensity, even for massive crop, to avoid any blockages. Rear end is adjusted to ensure smooth and efficient crop flow into swaths or wide wide spreading.

Steel Tine Conditioner

Utilizing centrifugal force is what makes the Kverneland SemiSwing conditioner stand out among other conditioning systems.  It offers an aggressive conditioning effect while still offering excellent tine protection and virtually no wear and tear.  During operation tines will stay in a fixed position, providing full conditioning with minimum wear.

Tackle Curves Without Leaving Uncut Crop

CurvePilot is an automatic system, featured on EXTRA 7110, that constantly adjusts overlap between front and rear mowing units so you can utilise the working width and capacity to the maximum.

Full Capacity On Headlands

When mowing headlands you typically position the mowing units with full overlap, reducing working capacity, to avoid leaving uncut crop in the field. With CurvePilot as standard you can mow at full working width and utilise the maximum capacity of the mower. CurvePilot will automatically choose the correct minimum overlap.

Avoid Mistakes During Headland Turns

When mowing A-B lines with a GPS steered solution the tractor can make sudden counter steers when starting again on headlands if you are not hitting the exact starting point of the GPS tracks. When this occurs, CurvePilot immediately increases overlap to compensate and avoid leaving uncut crop behind.

Comfortably Passing Obstacles

When mowing up and down the field you will typically mow with the mowing units at the maximum working capacity, leaving very little overlap between the front and rear mowing units. When driving around obstacles in the field, CurvePilot will automatically adjust the overlap and immediately compensates when you make turns in the field.

Designed for Versatility

The Kverneland BX is primed to maximise working capacity and utilise the full capacity of the 53100 & 55100 without compromising on quality of work. Kverneland BX automatically does the job of adjusting belt speed to working width, for the same uniform swath width, regardless of position of mowing units. This means maximum working capacity, excellent operator comfort and an even, uniform swath formation.

The Advantages

Features all the same advantages as the standard 53100 & 55100 models. Additional advantages include:

• Automatic belt speed adjustment
• Adjustable belt height
• Belt boost for headland operation
• Autostop function for minimised fuel consumption
• Versatile 4-in-1 solution

Even More Efficient Conditioning

The new conditioner plate can be adjusted at both front and rear ends to customise the conditioner to crop intensity.

The front end (1) is adjusted separately to suit the crop intensity, even for massive crop, to avoid any blockages.

Rear end (2) is adjusted to ensure smooth and efficient crop flow into swaths or widespreading.
