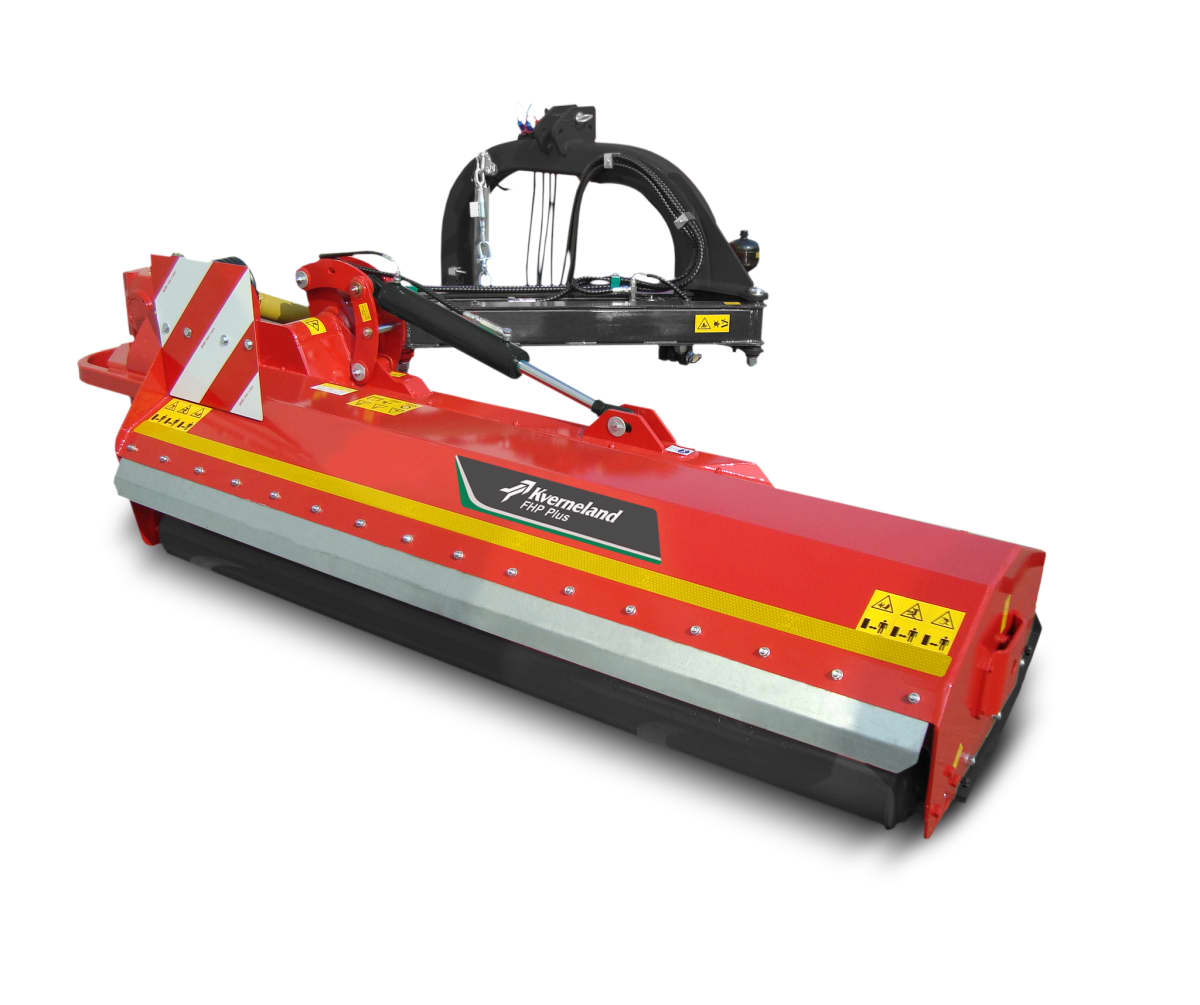

Kverneland FHPplus
Chopper | Flail Chopper
Compact and easy
Multi-purpose side pivoting chopper
The advantages of this Flail Chopper
- Large diameter rotor & high rotation speed
- Different blades can be mounted on the same rotor
- Optional skids, rear roller for better ground following
- Counter knife, double skin for good chopping results
Description

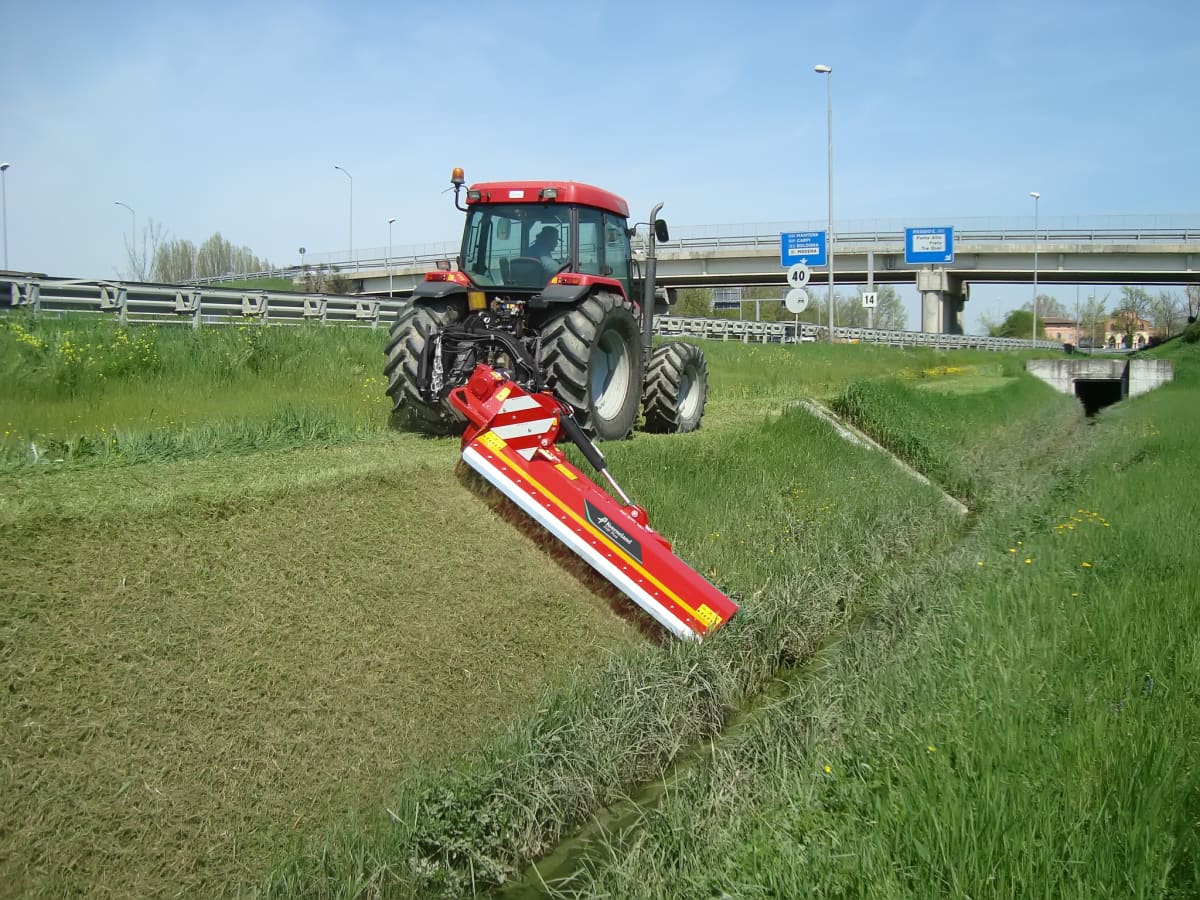

Kverneland FHP plus is a multi-purpose chopper suitable for roadside verge maintenance, clearing out field edges, ditches and hedges. In addition, the FHP plus allows versatile use on grass, light wood and bushes ideal for keeping parks, gardens and rough ground under control. Combined with a front-mounted chopper (FRO or FRD), the pivoting chopper FHP plus can make a high-performance set-up for all circumstances.
Highlights
- Large diameter rotor, precise balancing, high rotation speed (1858 rpm)
- Different blades can be mounted on the same rotor: universal & hammer blades
- Counter knife and double skin for improved chopping results and longer working life
- Accumulator to prevent any damage due to collision with obstacles
Features
- Features a sturdy headstock- Highly resistant to stress from heavy usage
- Reinforced parallelogram enhances stability and flexibility.
- Different working widths can achieve various offset positions.
- Oil-bath gearboxes, up to 150hp, guarantee durability and longevity.
- An automatic belt tensioner requires minimal maintenance, eliminating the need for belt adjustments.
- Compact, low-profile, and rounded, crafted for heavy-duty applications.
- Robust build to prevent damage and withstand intensive use.
- Maintenance: easy access to multiple greasing points enhances efficient upkeep.
- Made from a sturdy 169x10mm tube, this design ensures strength with a cutting diameter of 452mm.
- Large diameter ensures precise balancing and smooth, vibration-free operation.
- Universal Y and Hammer blades are designed to offer you exceptional performance and reliability.
- Double Skin- Standard thickness of 4mm
- The first counter knife is standard, while the second is an option
Technical specifications
Technical specifications
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| FHP Plus | ||||
|---|---|---|---|---|
| Working width (cm) | 200 | 230 | 250 | |
| Transport width (cm) | 255 | 285 | 305 | |
| No.of blades (only univ) | 52/26 | 60/30 | 64/32 | |
| Weight (kg) | 900 | 960 | 985 |
Unable to load the table
Technical specifications
Technical specifications
Download brochureModel |
Working width (m) |
Weight (kg) |
No. of blades (universal/hammer) |
FHP plus 200 |
2.0 |
900 |
52/26 |
FHP plus 230 |
2.3 |
960 |
60/30 |
FHP plus 250 |
2.5 |
985 |
64/32 |
