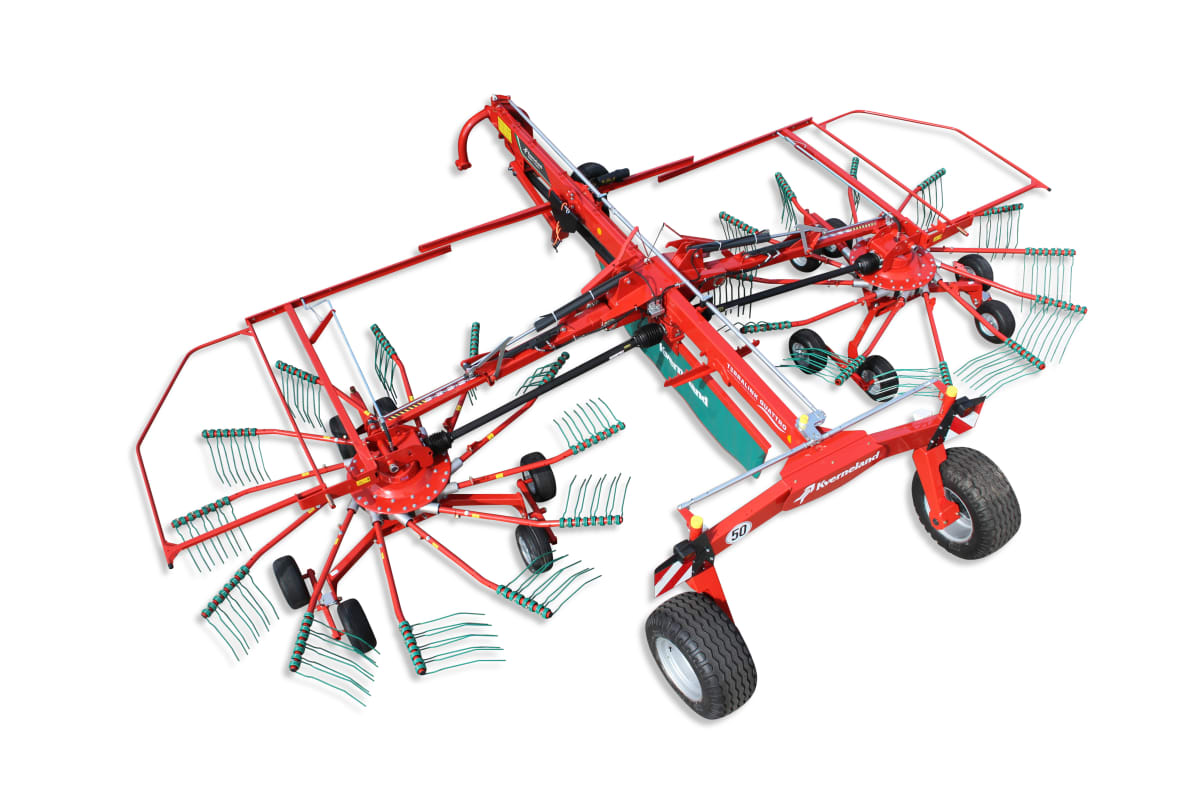

Kverneland 9590 C (HYDRO)
High-performance double rotor rakes with a high working width
ProLine rake heavy-duty two-rotor rakes with 9.0m working width
Highlights
Strong frame for stable raking & high ground clearance TerraLink Quattro with adaptation in 3 dimensions Adjustable working width from the tractor cab ProLine gearbox with fully enclosed oil bath design Special designed rear axle for narrow roadsDescription
The 9590 C Hydro ProLine rake is designed for easy operation with several features to make the whole process very easy with a 9.0m working width and offers the flexibility to adjust the working width between 8-9.00m. Thanks to the Hydro transport, axle t will stay below 4.00m during transport, even with fully mounted tine arms. Standard the machine comes with a simple lift arm suspension, individual rotor lifting, and the option of adding the optional electric height adjustment.
Highlights
- High-performance maintenance-free gear to cope with the largest amount of crop
- TerraLink Quattro – excellent ground adaptation thanks to a simple system with no joints to wear out
- Excellent manoeuvrability with steered wheels for tight turns of up to 80°
- Standard with the individual lifting of rotors and rotor suspension
Features
- The ProLine rakes feature a unique drive system which comprises oil-immersed pinion and crown wheels.
- The fully enclosed design ensures full and permanent lubrication, and makes the entire system absolutely maintenance-free.
- The hardened cam track is adjustable, and features a flat curve and an extremely large 400mm-diameter, providing positive guidance to the steel rollers, and promoting quiet machine running.
- Aluminium-bearing housings, with two integral ball bearings and wide support, provide solid and maintenance-free tine arm mounting.
- The rear carrier frame with controlled steering facility allows tight turns on headlands and loss free swathing, even in awkwardly shaped fields.
- Even if the rotors are lifted on a steep slope, the steering system reliably counteracts any deviation.
- The ability to make sharp turns up to 80° and the cross stabilizer in the headstock are unique Kverneland features.
- Kverneland rotary rakes are designed to do well-shaped and clean swaths, achieved with precision in every part of the raking.
- The ability to follow ground contours is important to avoid dirt in the swath - especially in uneven field conditions.
- The TerraLink Quattro system controls the rotor in 3 dimensions, with a unique combination of an undercarriage with 4 wheels and a specially designed rotor suspension system. This ensures superb raking performance, even at higher forward speeds.
- Maintenance-free system - no pivots or joints to wear out.
- Automatic rotor suspension, ensuring smooth operation.
- Built-in pressure bias on front wheels prevents lifting and tine bounce.
- Optimal ground following for clean raking at high forward speeds. All wheels are positioned close to the tines.
- The Kverneland centre swath rakes offer hydraulic adjustable working width.
- This enables varying swath width, ensuring a perfect match to the pick up width of loader wagons, balers and foragers.
Working Width |
Swath Width |
|
9472 C |
6.20 - 7.20m |
1.20 - 2.20m |
9476 C |
7.00 - 7.80m |
1.20 - 2.20m |
9580 C |
7.00 - 8.00m |
1.20 - 2.20m |
9584 C |
7.60 - 8.40m |
1.30 - 2.10m |
9590 C Hydro |
8.00 - 9.00m |
1.20 - 2.20m |
Technical specifications
Technical specifications
Download brochure| 9590 C Hydro | ||
|---|---|---|
| Working Width | 8.0-9.0m | |
| Tine Arms | 2x14 | |
| Weight (kg) | 2350 | |
| Rotor diameter (m) | 3.85 |
Technical specifications
Technical specifications
Download brochureWorking Width |
Tine Arms |
Weight |
|
9580 C |
7.00 - 8.00m |
2x12 |
2065kg |
9584 C |
7.60 - 8.40m |
2x12 |
2285kg |
9590 C Hydro |
8.00 - 9.00m |
2x14 |
2350kg |
