Kverneland FXF
Chopper | Flail Chopper
Wide in the field - narrow on the road
High-performance rotor for excellent shredding in all conditions
The advantages of this Flail Chopper
- Large scale chopping
- Robust reliability in the toughest conditions

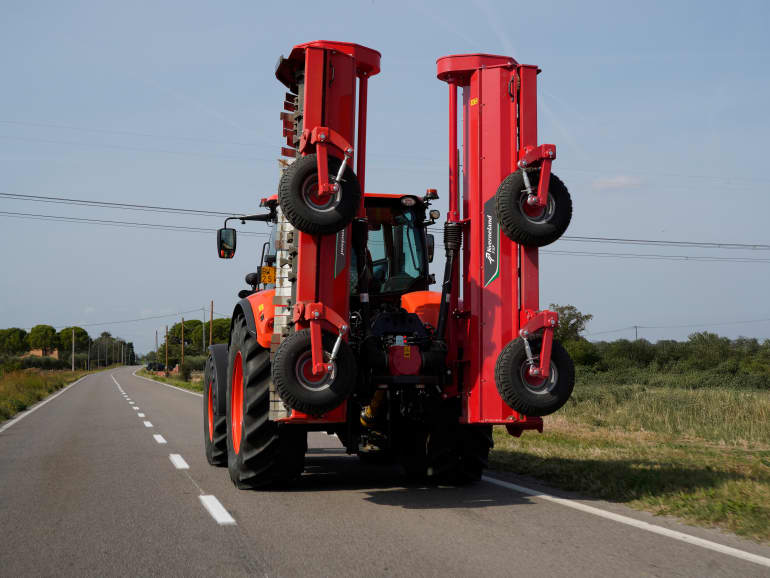

- Safe in transport position by automatic hydraulic lock
- Perfect following of ground contours
Description
The FXF foldable is particularly suitable for tractors up to 260hp, with working widths from 5.60 to 6.40m. Wide in the field - narrow on the road: Despite the wide working width the FXF folds to 2.50m transport width. The highly efficient rotor, which works at a speed of 2025rpm ensures excellent chopping in all conditions, thanks to its cutting diameter of 540mm, and 144 blades and fun blades.
Features
Features
- Third point linkage with the oscillating bracket.
- Headstock taken from power harrow; designed and tested for heavy applications.
- PTO tractor input at 1000 rpm;
- Central gearbox supports up to 260 hp and comes standard with an integrated free wheel.
- Five V-belts on each side, along with an automatic belt tensioner
- Hydraulic transport lock as standard; safe road transport.
- One counter knife is standard.
- Skids are standard, ensuring precise depth control and preventing soil displacement.
- High rotor clearance improves performance in harsh conditions.
- 5 V-belts per side, combined with an automatic tensioner, ensure smooth transmission.
- The large diameter enables easy, precise balancing and provides smooth, vibration-free operation.
- Universal Y and Hammer blades are designed to provide exceptional performance and reliability
- Wide wheels (10/8.8x12.8 ply) offer effective control during field operations.
- The roller provides reliable depth control in all conditions.
- A double skin can be bolted if FXF operates in areas with rocky terrain.
- A second counter knife is an optional accessory
Technical specifications
Technical specifications
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| FXF | |||
|---|---|---|---|
| Working width (cm) | 560 | 640 | |
| Transport width (cm) | 250 | 250 | |
| No.of blades (only univ) | 144/72 | 160/80 | |
| Weight (kg) | 2400 | 2700 |
Unable to load the table
Technical specifications
Technical specifications
Download brochureModel |
FXF 560 |
FXF 640 |
Working width (m) |
5.6 |
6.4 |
Transport width (m) |
2.5 |
2.5 |
Weight (kg) |
2400 |
2700 |
No. of universal blades |
144 |
160 |
No. of hammer blades |
72 |
80 |
Min. - max. power requirement (hp) |
130 - 260 |
130 - 260 |
