Kverneland LO
Plough | Reversible Plough
High output and low maintenance costs
KVERNELAND LO & LO VARIOMAT High performance plough On-land & In-furrow 4 - 7 furrows
The advantages of this Reversible Plough
- Safe transport: optional Trailer Transport Solution
- Easy conversion from In-furrow to On-land operations
- Ideal for tractors with dual wheels or rubber tracks
- Infinite hydraulic furrow width adjustments
- Easy manual adjustments in steps of 5cm (2")
Description
Designed for In-Furrow and On-Land operations, the Kverneland LO stepwise and LO Variomat® are robust ploughs with lower lift requirements than other brands. The heavy duty head stock No 300 provides the necessary strength for a smooth reversing. The Kverneland unique steels and the heat treatment of the complete plough guarantee its longevity. The On-land configuration of the plough offers an impressive offset: adjustable up to 3.4 – 3.7 m, depending on furrow width and interbody clearance. It allows the tractor to be positioned exactly to the drivers’ requirements.
Highlights
- Safe transport: Kverneland Trailer Transport Solution (optional: TTS)
- Simple conversion from In-furrow to On-land operations. The driver has fingertip control
- Ideal for tractors having dual wheels or rubber tracks
- Infinite hydraulic furrow width adjustments with the Kverneland LO Variomat®
- Easy manual adjustments in steps of 5cm (2") for Kverneland LO, by replacing only 1 bolt
- Efficient soil re-consolidation in one pass: Kverneland packers and packer arm
- All models can be extended by 1 furrow, max. 7 furrow plough
Features

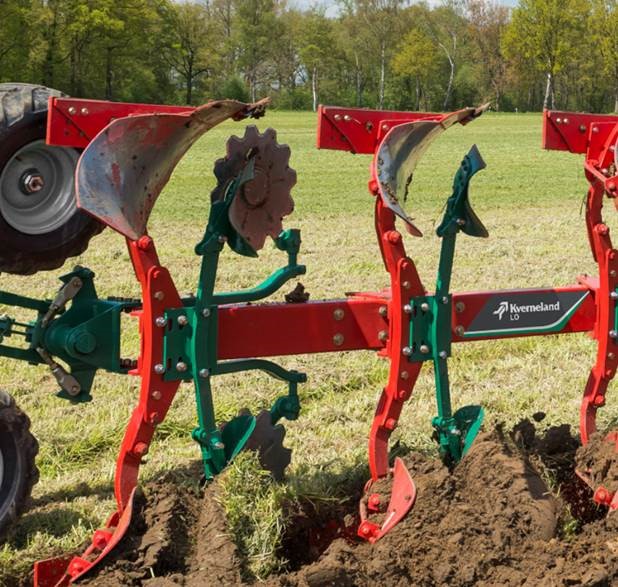

Robust legs with 80cm underbeam clearance.
Ideal leg protections for light to the heaviest soils without stones.
Shearbolt protections with 4200 kp release force.
Stepless Vari-width® system for infinite adjustments of working width. Kverneland’s world patented system is available either with hydraulic or mechanical furrow adjustments.
Benefits:
- Easy variation of ploughing capacity
- Perfect match at all time between tractor capacity, implement and soil conditions
- Time saving: up to 30% more capacity
- Cost saving: up to 18% reduction in fuel consumption in relation with increased ploughing capacity
- Better work: plough up to the hedges, fences, trees and ditches
- Minimum wear: unique non-wearing linkage joint between the beams and the mainframe section
- Perfect line of pull at all time. Kverneland’s Vari-width offers the correct parallel linkage along the whole plough. Therefore, lower draft requirement, minimum wear and tear.
Importance of heat treatment
- The frame is an essential part of the plough construction. For Kverneland quality standards, a non heat treated part is a weak part!

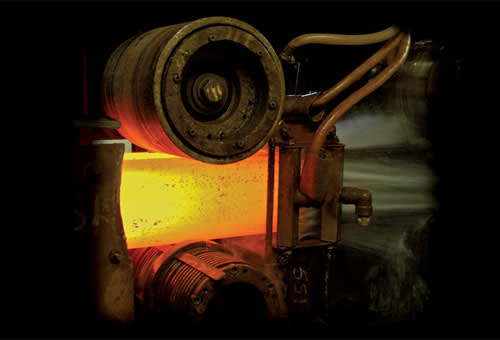

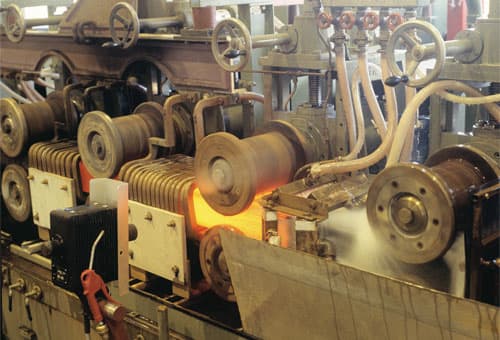

- Kverneland frames are heat treated by induction twice. The temperature transfer to the steel is closely monitored. The frame gains 3 times as much strength. This unique Kverneland induction processes provides robustness and flexibility while ensuring an outstanding durability.
Stronger but not heavier
- For the equivalent Kverneland robustness, competitors would use more steel in thickness or in dimensions, therefore producing a heavier frame.
- Heavier frame impacts negatively pulling forces, wearing of parts, lifting capacities, tractor life time, and fuel consumption.
Long lasting
- Weldings are also a critical weakness for a plough frame. Kverneland frames are supplied as one sole part!
Frame availability
- 120 x 200mm with head stock 300
- available in 4 to 7 furrows, extendable by 1 furrow max. 7 F ploughs
Excellent Ploughing Quality
They are renowned all over the world for their:
- excellent ploughing quality
- outstanding wear resistance
- low draft requirements
Bodies of a unique steel.
Kverneland Technology: 12 hours carburising heat treatment process for:
- optimum wear resistance (sharp as a diamond)
- the necessary flexibility to absorb impacts
Body No. 8 – “Universal body”
for light to heavy soils
good trash burial
easy pulling
Depth: 15 to 30 cm (6 to 12”)
Width: 30 to 55 cm (12 to 22”)
Body No. 9 – “Deep Universal body”
for heavier soils and deeper ploughing
well turned and packed furrows
easy pulling
Depth: 15 to 35 cm (6 to 14”)
Width: 30 to 55 cm (12 to 22”)
Body No. 28 – “Wide tyre body”
suits all soils; even heavier soils than body 8
very wide empty furrow for tractor wheels up to 710 mm
good turning and well packed
easy pulling
suitable for Depth: 12 to 30 cm ( 5 to 12”)
Width: 30 to 55 cm (12 to 22”)
Body No. 30 – “Finger body”
for sticky-stony soil and abrasive soils
good work in heavier soils
best crumbling effect
wide furrow bottom,
Depth: 20 to 35 cm (8 to 14”)
Width: 30 to 55 cm (12 to 22”)
Body No. 34 – Plastic mouldboard
Long and slim shape (similar to body 28)
For soils with high humus content without stones
Advised for tactors with large tyres
Easy pulling
Working depth: 12-35cm
Working width: 30-55cm
Landside / mouldboard: 40 degree
Body No. 38
universal body – easy to pull
for any soil conditions
recommended for tractors with large tyres
from deep to shallow ploughing
perfect turning of the furrow slice
working depth: 12-35 cm
working width: 30-55 cm
landside / mouldboard: 40°
Kverneland Heat Treatment Technology:
- more than 140 years of experience
- steels that withstand the toughest of conditions
- best robustness/weight ratio on the market
- for equivalent robustness, competitors would add more steel and therefore more weight, quicker wear, dissappointing ploughing results
Kverneland Steels:
- Benefits from less weight:
easier to pull/lower fuel consumption/lower lift requirement/reduced wear and stress for the tractor/more economical … - Benefits from more resistance:
minimum breakage/less maintenance/lower rotation for wearing parts/time saving/highest 2nd hand plough value/longer life for the plough/more economical…
Problems always happen when the plough is being used, when the work must be done!
A Kverneland plough is a peace mind!
More info: Kverneland Technology
Importance of heat treatment
- The frame is an essential part of the plough construction. For Kverneland quality standards, a non heat treated part is a weak part!
- Kverneland frames are heat treated by induction twice. The temperature transfer to the steel is closely monitored. The frame gains 3 times as much strength. This unique Kverneland induction processes provides robustness and flexibility while ensuring an outstanding durability.
Stronger but not heavier
- For the equivalent Kverneland robustness, competitors would use more steel in thickness or in dimensions, therefore producing a heavier frame.
- Heavier frame impacts negatively pulling forces, wearing of parts, lifting capacities, tractor life time, and fuel consumption.
Long lasting
- Weldings are also a critical weakness for a plough frame. Kverneland frames are supplied as one sole part!
Frame availability
- 120 x 200mm with head stock 300
- available in 4 to 7 furrows, extendable by 1 furrow max. 7 F ploughs
Stepless Vari-width® system for infinite adjustments of working width. Kverneland’s world patented system is available either with hydraulic or mechanical furrow adjustments.
Benefits:
- Easy variation of ploughing capacity
- Perfect match at all time between tractor capacity, implement and soil conditions
- Time saving: up to 30% more capacity
- Cost saving: up to 18% reduction in fuel consumption in relation with increased ploughing capacity
- Better work: plough up to the hedges, fences, trees and ditches
- Minimum wear: unique non-wearing linkage joint between the beams and the mainframe section
- Perfect line of pull at all time. Kverneland’s Vari-width offers the correct parallel linkage along the whole plough. Therefore, lower draft requirement, minimum wear and tear.
Robust legs with 80cm underbeam clearance.
Ideal leg protections for light to the heaviest soils without stones.
Shearbolt protections with 4200 kp release force.
Excellent Ploughing Quality
They are renowned all over the world for their:
- excellent ploughing quality
- outstanding wear resistance
- low draft requirements
Bodies of a unique steel.
Kverneland Technology: 12 hours carburising heat treatment process for:
- optimum wear resistance (sharp as a diamond)
- the necessary flexibility to absorb impacts
Body No. 8 – “Universal body”
for light to heavy soils
good trash burial
easy pulling
Depth: 15 to 30 cm (6 to 12”)
Width: 30 to 55 cm (12 to 22”)
Body No. 9 – “Deep Universal body”
for heavier soils and deeper ploughing
well turned and packed furrows
easy pulling
Depth: 15 to 35 cm (6 to 14”)
Width: 30 to 55 cm (12 to 22”)
Body No. 28 – “Wide tyre body”
suits all soils; even heavier soils than body 8
very wide empty furrow for tractor wheels up to 710 mm
good turning and well packed
easy pulling
suitable for Depth: 12 to 30 cm ( 5 to 12”)
Width: 30 to 55 cm (12 to 22”)
Body No. 30 – “Finger body”
for sticky-stony soil and abrasive soils
good work in heavier soils
best crumbling effect
wide furrow bottom,
Depth: 20 to 35 cm (8 to 14”)
Width: 30 to 55 cm (12 to 22”)
Body No. 34 – Plastic mouldboard
Long and slim shape (similar to body 28)
For soils with high humus content without stones
Advised for tactors with large tyres
Easy pulling
Working depth: 12-35cm
Working width: 30-55cm
Landside / mouldboard: 40 degree
Body No. 38
universal body – easy to pull
for any soil conditions
recommended for tractors with large tyres
from deep to shallow ploughing
perfect turning of the furrow slice
working depth: 12-35 cm
working width: 30-55 cm
landside / mouldboard: 40°
Kverneland Heat Treatment Technology:
- more than 140 years of experience
- steels that withstand the toughest of conditions
- best robustness/weight ratio on the market
- for equivalent robustness, competitors would add more steel and therefore more weight, quicker wear, dissappointing ploughing results
Kverneland Steels:
- Benefits from less weight:
easier to pull/lower fuel consumption/lower lift requirement/reduced wear and stress for the tractor/more economical … - Benefits from more resistance:
minimum breakage/less maintenance/lower rotation for wearing parts/time saving/highest 2nd hand plough value/longer life for the plough/more economical…
Problems always happen when the plough is being used, when the work must be done!
A Kverneland plough is a peace mind!
More info: Kverneland Technology
Technical specifications
Technical specifications
Download brochure| Model | LO | LO Variomat | ||
|---|---|---|---|---|
| Interbody clearance cm | 85/100 | 85/100 | ||
| Head- stock | Nº 300 | Nº 300 | ||
| Leg protection | Shearbolt | Shearbolt | ||
| Working width cm | 30-40-45-50 | 35-55 | ||
| Underbeam clearance cm | 80 | 80 | ||
| No. of furrows | 5-7 (6+1) | 5-7 (6+1) | ||
| Weight (kg) | 3 | – | ||
| Lift requirement (kg) | 3 | – | – |
Technical specifications
Technical specifications
Download brochureModel |
Interbody clearance cm |
Head stock |
Type of beam |
Working width cm |
Under beam clearance cm |
No of furrows |
LO |
85/100 |
300 |
Shearbolt |
30 - 50 |
70/80 |
4 - 7 |
LO Variomat |
85/100 |
300 |
Shearbolt |
35-55 |
70/80 |
4 - 7 |
