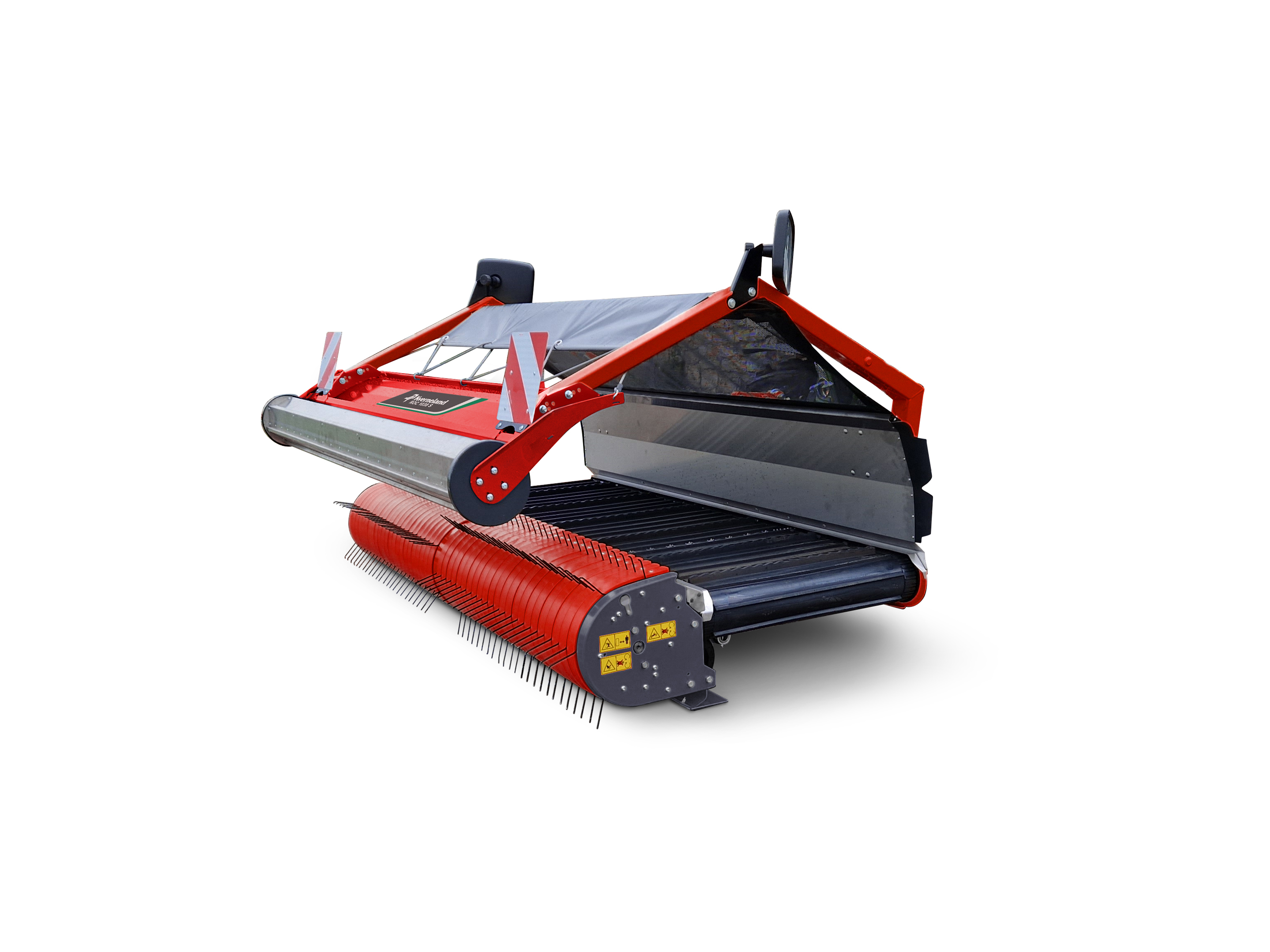

Kverneland Roc 1038 S
Merger | Multi Crop Merger
Excellent performance in challenging environments
Front and rear single pickup mounted mergers with 3.8m working width
The advantages of this Multi Crop Merger
- Exceptional execution for silage and short-crop markets
- Six bar pick-up and wide stripes provide the best performance in all types of crops
- The headstock can be equipped with an optional hydraulic suspension
- Standard wide suspended tandem wheels and emergency skids to protect the pickup
- Electric adjustable working height
Description

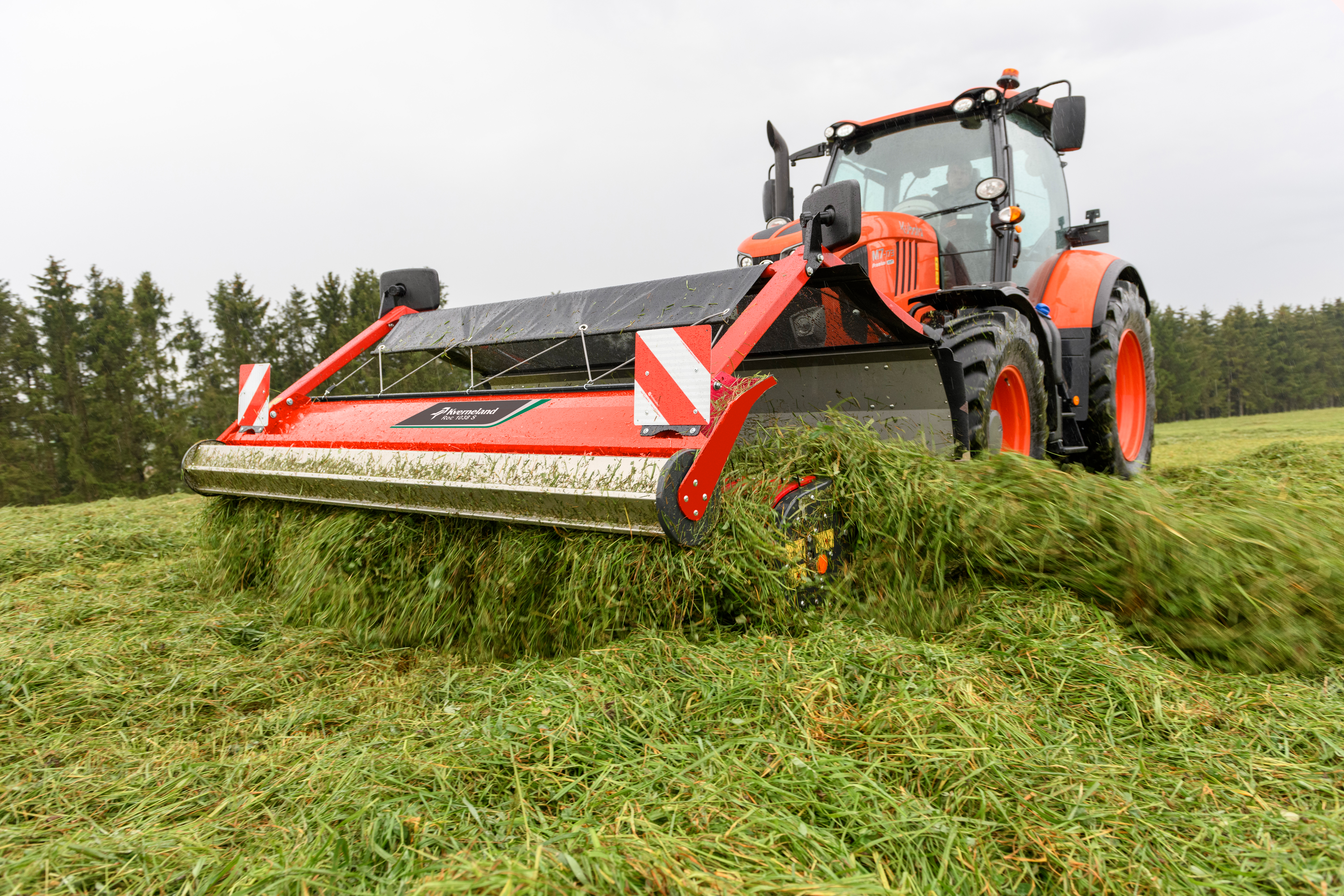

The Kverneland Roc 1038 S is a lightweight machine designed for hilly regions and challenging terrain. It can be mounted on the front or rear of a tractor and enables raking without driving on the crop. It offers comfortable driving with a transport width of less than 3m and standard mirrors.The Kverneland Mergers have a unique pick-up and belt design, enabling efficient crop picking and consistent flow. It can also turn existing swaths without roping during crop transportation for multiple pickups.The tractor's hydraulic oil flow allows the belt to rotate left or right, and its standard mechanically suspended tandem wheels ensure good ground tracking. The headstock is automatically locked when lifted, allowing for easy adaptation to the ground.
Highlights
- Reversible 3-point mounted merger with 3.8m working width suitable for dry and long crop
- Designed to be mounted in front or rear of a tractor and a roller near the tines to ensure smooth material flow even in short crops.
- Unique pick-up system with 6 bars & belt design to ensure clean merging.
- Standard hydraulic system and mirrors ensure complete control of the machine
- Suspended tandem wheels.
- Electric height adjustment system
- Easy maintenance, quality, and replacement of components
Technical specifications
Technical specifications
Download brochure| Kverneland Roc 1038 S | ||
|---|---|---|
| Working width (m) | 3.8 | |
| Pick up width (m) | 2.95 | |
| Transport width (m) | 3.0 | |
| Belts n. | 1 | |
| Power requirement (hp) | 60 | |
| Weight (kg) | 980 |
Technical specifications
Technical specifications
Download brochureWorking width (m) |
Pick-up width (m) |
Transport width (m) |
Power requirement (hp) |
Weight (kg) |
|
Kverneland Roc 1038 S |
3.8 |
2.95 |
3 |
60 |
980 |
