Kverneland Roc 1073 S
Merger | Multi Crop Merger
Side or centre delivery mergers
Universal Mergers with variable working width from 7 to 7.3m
The advantages of this Multi Crop Merger
- A belt with saw-shaped, fibreglass-reinforced crossbars
- Wide suspended tandem wheels under the belt provide protection for grass fields
- The unique belt design results in even and fluffy swaths
- Crop placement and swath volume can be highly versatile
- Thanks to the high volume of oil, there is no need for a cooling fan
Description

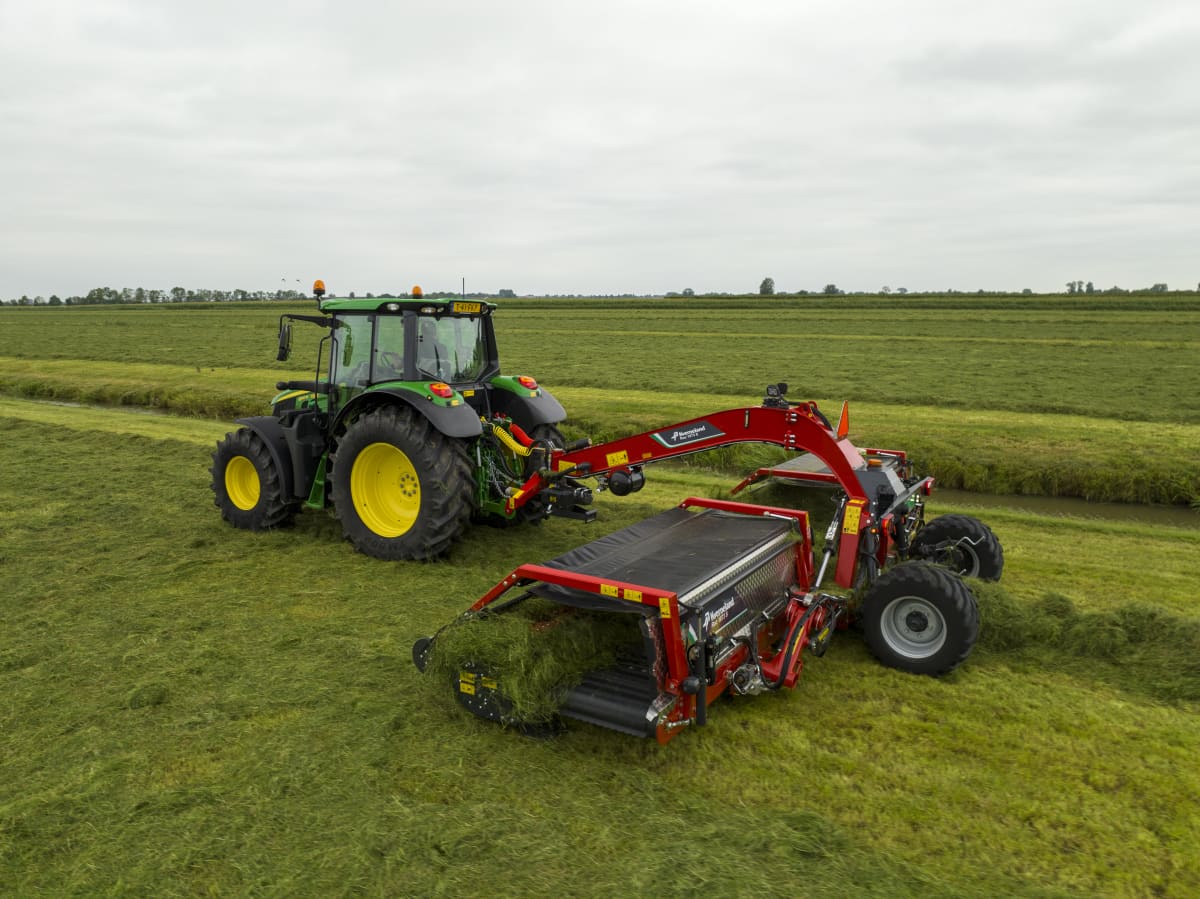

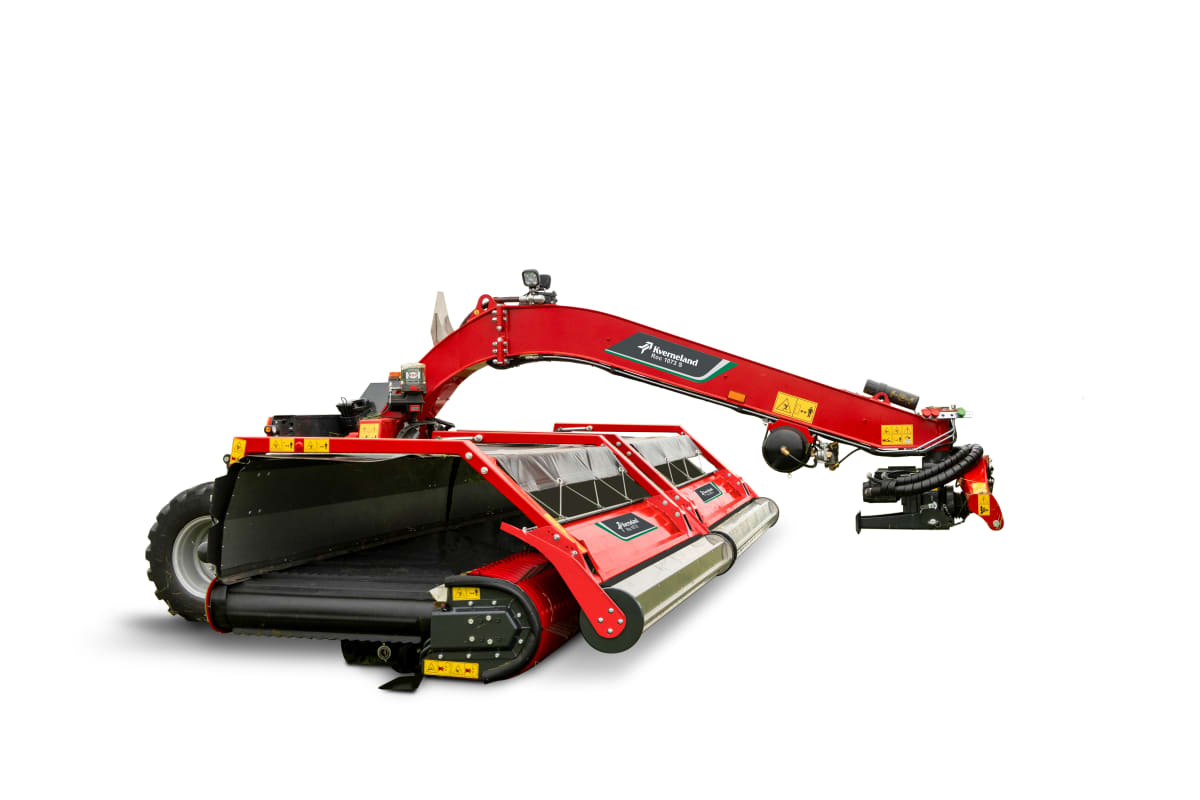

The Kverneland Roc 1073 S is a machine designed with two pick-up units that can be hydraulically shifted to allow the operator to use it for side or centre delivery. The side delivery has a minimum working width of 7m, while the centre swath can expand to a maximum of 7.30m.The remarkable features include excellent suspension for lifting and transporting crops without soil contamination. Its six-bar pick-up and roller work well for various silage cuts, and the reinforced belt has saw-blade-shaped crossbars for all crop conditions. Additionally, the fully suspended roller can be hydraulically lifted from the cab in any position for high-volume dry crops.The Kverneland Roc 1073 S can be folded to 2.5m width for easy road transport and has road suspension for comfortable and fast transportation.
Highlights
• Rear-mounted 2 belt merger with variable working width from 5.95m to 7.30m.
• Designed for universal use as a side or central swath delivery.
• Unique pick-up system with 6 bars to ensure clean merging.
• A 250 mm roller near the tines guarantees smooth material flow for best swathing, even in short crops.
• Unique transport suspension carrier with centrally suspended turning point for pick-up units and tandem wheels.
• Electric height adjustment system
• High steering and manoeuvrability
• Foldable 2.5m width for road transport.
• Easy maintenance, quality, and replacement of components.
• An intuitive control unit operates all important functions.
Technical specifications
Technical specifications
Download brochure| Kverneland Roc 1073 S | ||
|---|---|---|
| Working width (m) | 7-7.3 | |
| Pick up width (m) | 2 x 2.95 | |
| Transport width (m) | 2.5 | |
| Belts n. | 2 | |
| Power requirement (hp) | 70 | |
| Weight (kg) | 3440 |
Technical specifications
Technical specifications
Download brochure
|
Working width center swath (m) |
Pick-up width (m) |
Belts n |
Transport width (m) |
Power requirement (hp) |
Weight (kg) |
Kverneland Roc 1073 S |
7-7.3 |
2x2.95 |
2 |
2.5 |
70 |
3440 |
