TrailedLine 4.0 System 1000+
Hopper capacities from 27m³ to 45m³ with 3 mixing augers
Description

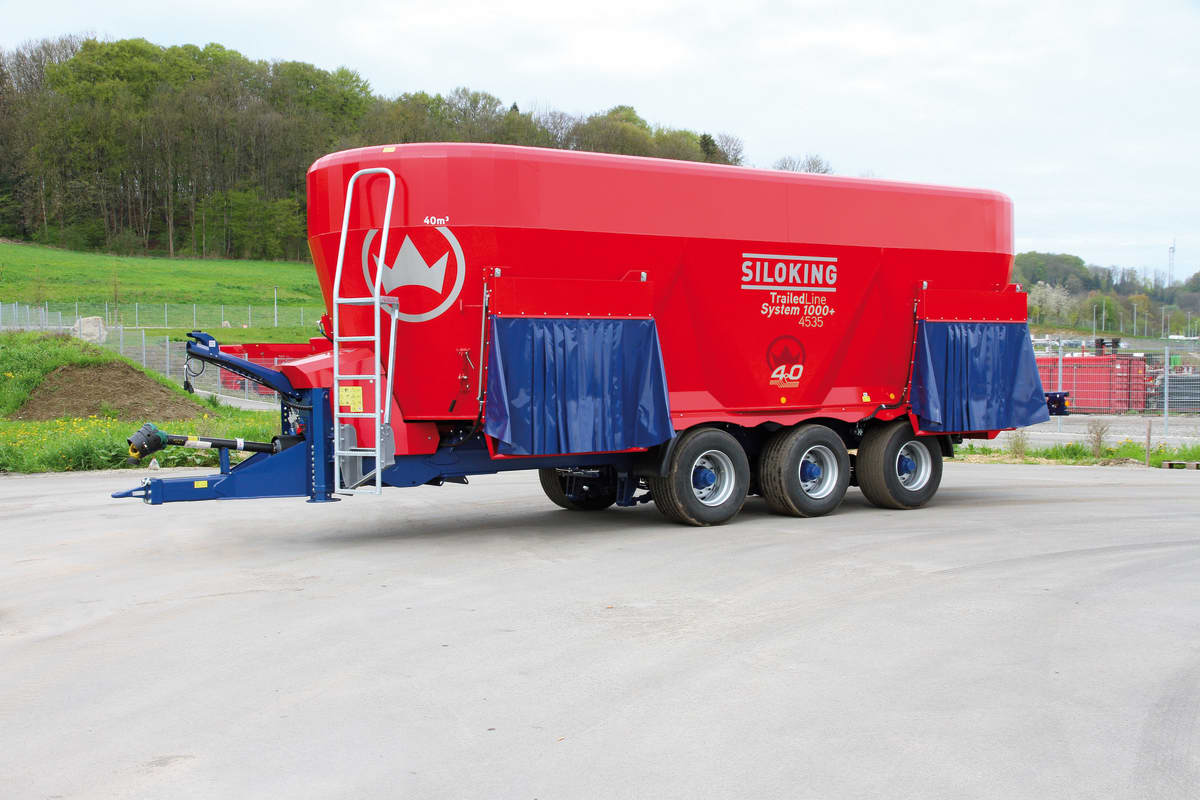

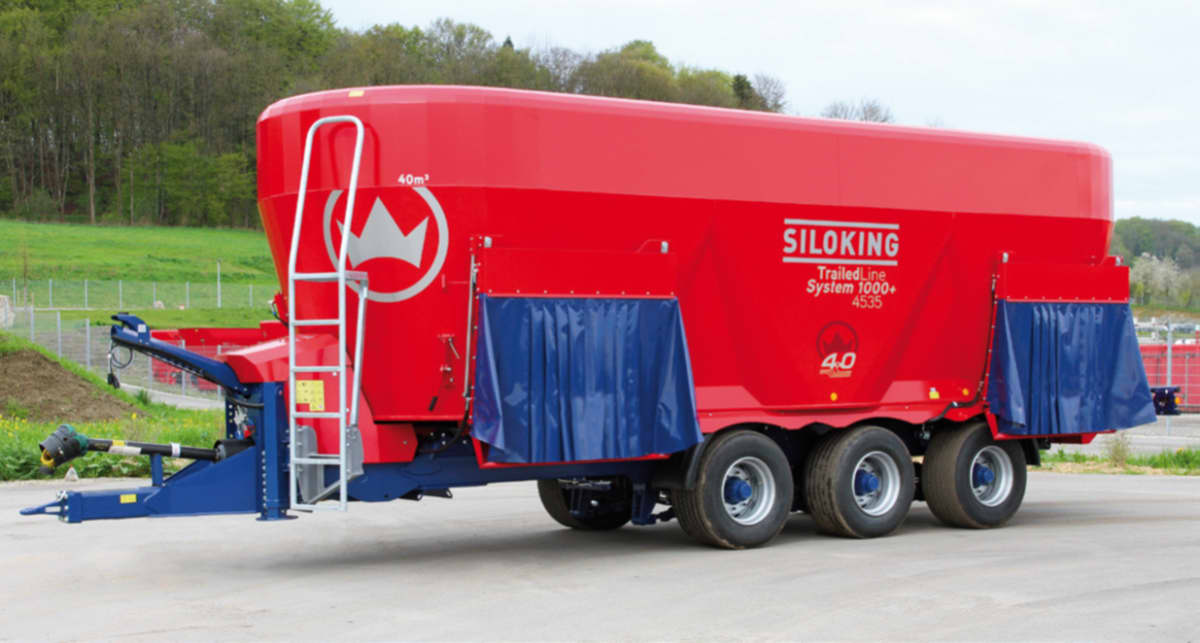

TrailedLine 4.0 System 1000+ is the Kverneland Siloking response to changing requirements in animal husbandry, placing the focus on time saving and precision.

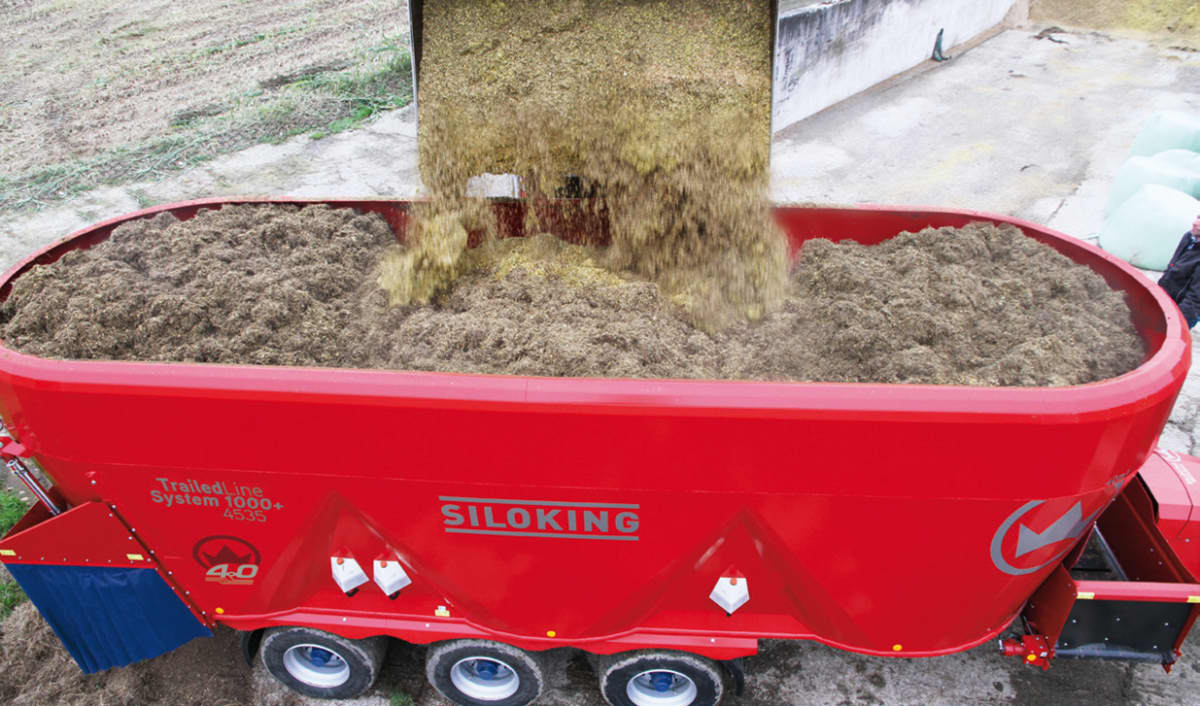

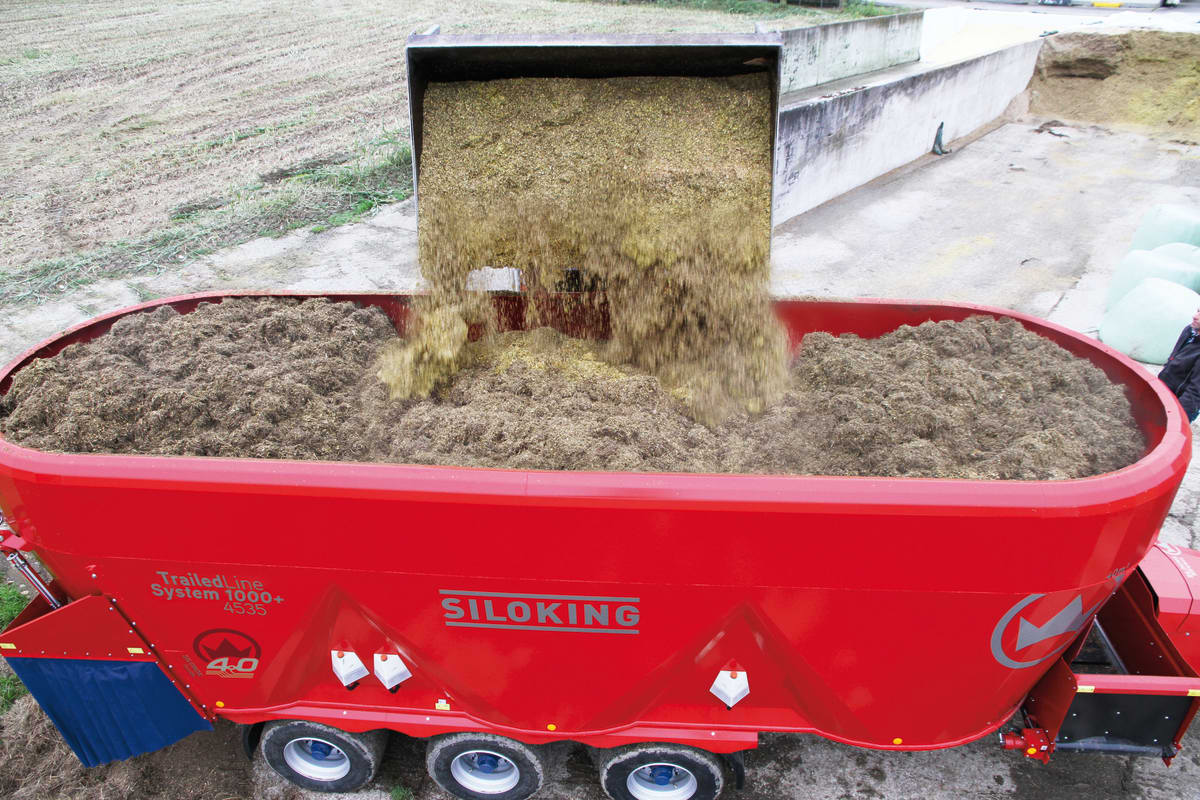

The 3 vertical mixing augers of the TMR feed mixer provide quick and homogeneous feed mixing, which additionally saves diesel. At the same time, it offers hopper widths and hopper heights from 2.87m to be adapted flexibly and it is ideal for herds of 300 cows or more.

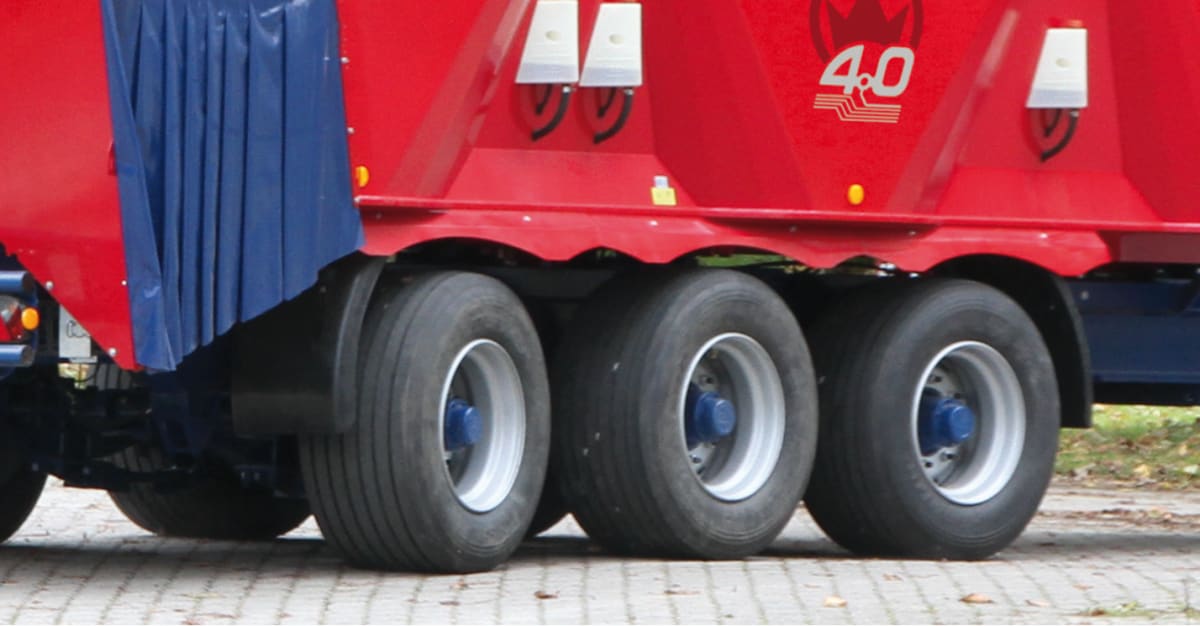

The Siloking tandem or tridem axle, fixed or as steering axle, distributes the weight onto the axles and fulfills special requirements regarding transport capacity and manoeuvrability.
Technical specifications
Technical specifications
Download brochureModel |
Capacity (m³) |
Length (m) |
Width (m) |
Height (m) |
System 1000+ 3327-27 |
27 |
9.55 |
2.53 |
2.87 |
System 1000+ 3327-30 |
30 |
9.55 |
2.53 |
3.04 |
System 1000+ 3327-33 |
33 |
9.55 |
2.53 |
3.21 |
System 1000+ 4535-35 |
35 |
9.90 |
2.71 |
2.99 |
System 1000+ 4535-40 |
40 |
9.90 |
2.71 |
3.32 |
System 1000+ 4535-45 |
45 |
9.90 |
2.71 |
3.53 |
