By inserting a triangular washer between the tine and the tine arm – the Super-C tine can be locked in three alternative positions for optimum performance in different crop conditions.
Passive angle of -4°. Insert the washer with slope against the direction of rotation.
Standard angle of 0 degrees. No washer required as per standard factory specification.
Aggressive angle of +4°. Insert the washer with slope in direction of rotation.
TRIANGULAR WASHER: VF16644606.61

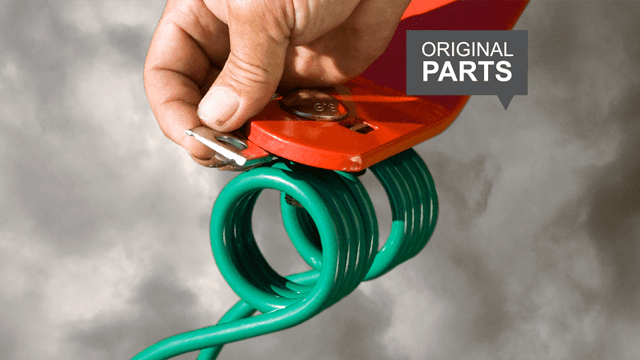

The Super-C Tine is made from 10mm Shot-blasted Coil spring steel and has two equal length legs to evenly spread the load. Being 20% greater in diameter than conventional designs – results in one of the most durable and flexible tines on the market.
Damage to both livestock and machinery can be avoided by fitting Tine Safety clips to all tines. Mounted below the coil securing both tine legs - the safety device holds both halves of the tine together to prevent it from being lost in the crop.
Using the appropriate Fixing Kits, securely tightened at all times, will ensure the tines give maximum performance and keeps losses and downtime to a minimum. (*Can be used with triangular washers – see above)
