5387 MT - Easy-to-operate solution for greater productivity

Kverneland expands its offering in the triple mower segment with two new triple mower conditioner combinations. Two 8.75m combinations with the innovative QuattroLink suspension concept specifically designed for long productive working days.

5387 MT - Easy-to-operate solution for greater productivity

Kverneland expands its offering in the triple mower segment with two new triple mower conditioner combinations. Two 8.75m combinations with the innovative QuattroLink suspension concept specifically designed for long productive working days.

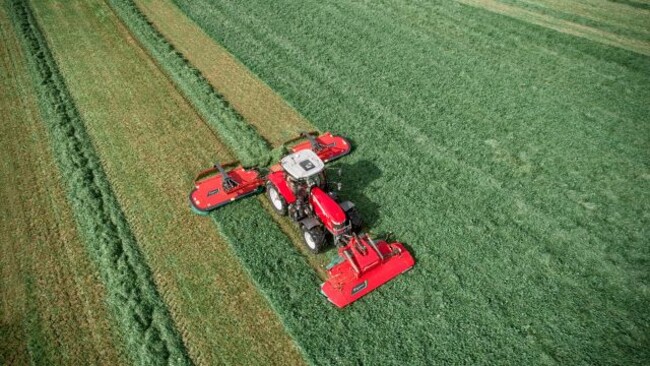

Kverneland 5387 MT Moco

High-Performance Mowing

The heavy-duty build Kverneland 5387 MT is based on the 3300 series platform and includes well-established features like QuattroLink suspension concept, SemiSwing steel tine conditioning and dual adjustment of conditioner plate. The 5387 MT is developed for maximum productivity and offers excellent ground tracking, easy operation, and outstanding versatility.

Comprising two 3.2m mowing units, each with 8 round Kverneland discs, this combination can be operated by tractors starting from 180hp. The 5387 MT is easy to handle and operate and is available with simple mechanical controls as standard, or the extra comfort of the Dual Lift Control joystick for electro-hydraulic folding and unfolding as an option.

“The Kverneland 5387 MT takes all the strong features of the well-established 10m triple mower 53100 MT into a more compact package. This is a productive, easy to handle and versatile mower” explains Jelle Hospes, Product Manager, Disc Mowers.

New Belt Merger Version

Kverneland 5387 MT is available in a BX version with belt merger for efficient crop collection. The belt merger offers significant possibilities to improve productivity and quality of output.

The swath belts are designed for work with massive volumes of crop, including heavy first cut silage. Featuring high-speed belts that will operate up to 1500rpm, they can carry high crop volumes and place the grass into even, narrow swaths.

Open centre tractor hydraulics and the pre-selection control box, which comes as standard with the machine, power the Kverneland 5387 MT BX.

Dismounting the BX belts can be done in less than 15 minutes. The Kverneland 5387 MT BX has the smart option to quickly dismount the two BX belts and park them safely on specially designed transport rollersIn this way, you can easily leave unnecessary weight at home when crop merging is not needed.

QuattroLink for Accurate Ground Tracking

The Kverneland hallmark, the QuattroLink suspension, provides accurate ground following ability and generous working range. The 4-arm suspension concept provides the mowing unit with exceptional flexibility in adapting to demanding ground contours. The mowing pattern is flexible with a vertical working range of 400mm upwards and 300mm downwards and a transverse adaptation range of 30°.

The 100% NonStop BreakAway system offers protection across the full working width of the mower, including the part closest to the tractor. There are no limiting factors on the inside part of the mower. When hitting an obstacle in the field, the mowing unit will instantly move backwards and up, and then return to the original position.

Efficient Transport for Productive Days

The Kverneland 5387 MT folds into a safe transport position, above 90° for stable weight distribution and importantly to keep the mowing units away from tree tops during transport. The outer FlexProtect guards fold hydraulically into transport position (optional), with no need to leave the tractor cab. Strong and stable parking feet for vertical parking are standard, requiring minimum space during winter storage.

Technical specifications:





Kverneland 5387 MT

Kverneland 5387 MT BX

Working width

8.75m

8.75m

Weight

2975kg

3515kg

Conditioner type

SemiSwing steel tines

SemiSwing steel tines

Power req. min. (hp/kW)

180/132

200/147

5387 MT
