The cultivation of sugar beet requires special care and the right supply of nutrients. In this respect, the application of micro granule and micro fertiliser whilst seeding plays an important role for early crop development, giving the plants a head start to grow into a strong crop.
We are very proud that the Julius Kühn Institute (Institute for Application Techniques in Plant Protection) has extended the approval for the Kverneland micro granule applicator, micro-drill (Reference G 2196). The approval given in the first step for the combination with the Optima now also includes the Kverneland Monopill and Unicorn. (JKI: Application Techniques in Plant Protection (julius-kuehn.de).
Emission control
The advantage for the environment: the granulate falls freely into the seed furrow without air support, minimising the emission of dust and complying with the current guidelines for emission control for any granulates applied.
Each unit of the micro-drill has been designed to supply three sowing units and offers a hopper capacity of 35 liters. It is electrically driven and ISOBUS controlled. The metering device developed in Soest consists of a wear-resistant plastic housing and exchangeable cell wheels made of stainless steel which ensure precise metering of different micro granules. Application rates from 2kg up to 25kg/ha are possible.
Precision Farming
The comfortable, fully ISOBUS, integrated control system allows the adaption of the stop and start points of the seed row. This ensures precise shutting on and off at the end of the field (without overlaps or faults).
Operator safety
The engineers’ focus has been to increase operator safety by easy and safe handling. Therefore, the operator is able to exchange the cell wheels even when the hoppers are full of granule. There is no need to empty them first, reducing the operator’s risk of being in direct contact with the granules.

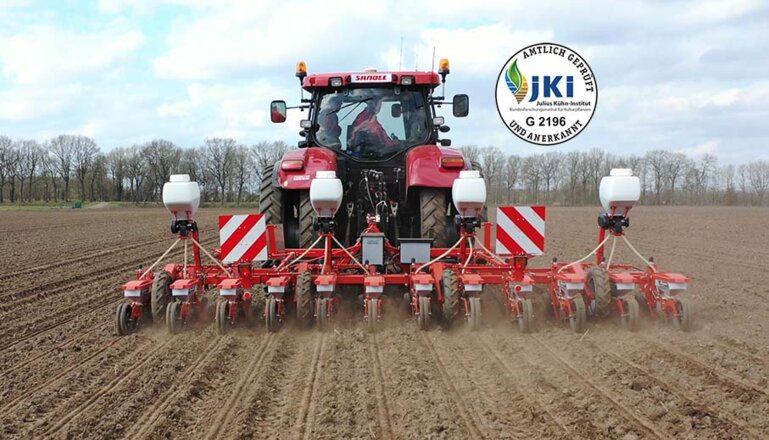

The Kverneland micro-drill is available for Monopill e-drive II and Unicorn e-drive II.
Technical data on Kverneland micro-drill with Monopill and Unicorn
Hopper capacity (litres) |
35 |
Min. application rate (kg/ha) |
2 |
Max. application rate (kg/ha) |
25 |
Cell wheels |
Different cell wheels in 3mm, 6mm and 9mm width for granule, micro fertilizer and slug pellets |
Power requirement |
Max. 3A/12V |
Electronic system |
ISOBUS (GEOCONTROL of the sowing row) |
Electronic standard |
AEF conform |
Weight (w/o granule/fertilizer) kg |
8.9 |
14 February 2022
